Engine Cooling System Components

PY42593-UN-31JUL17

PY9670-UN-21JUN09

PY4162-UN-28AUG04

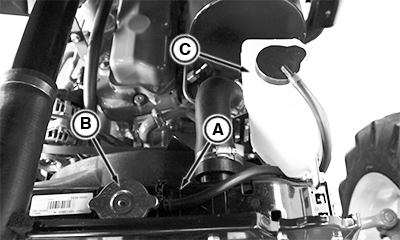

A - Radiator

B - Radiator Cap

C - Coolant Recovery Tank

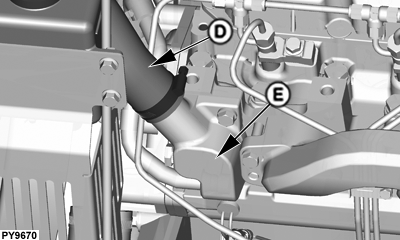

D - Upper Radiator Hose

E - Thermostat Housing

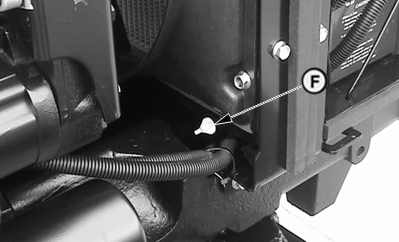

F - Radiator Drain

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

The tractors utilize a remote coolant recovery tank. Make-up coolant is added to the coolant recovery tank rather than directly to the radiator.
