Connect Starter Wiring

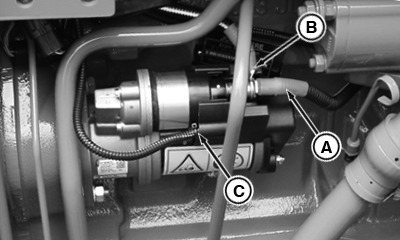

PY42594-UN-31JUL17

A - Large Battery Cable

B - Alternator Cable

C - Large Solenoid Post

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

Connect large battery cable (A) and alternator cable (B) to large solenoid post (C).
