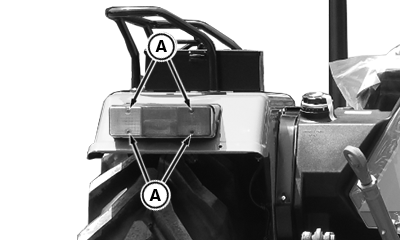

Replace Tail Light and Warning Light Bulbs

PY42595-UN-31JUL17

A - Cap Screws (2 used)

1. Remove screws (A ).

2. Remove lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble light.
