Adjust Ride Comfort (If Equipped)

PY1033-UN-24JUN01

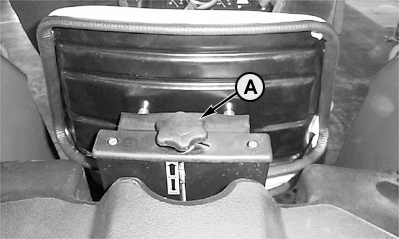

A - Weight Adjustment Knob

Adjustment knob is located behind seat.

Weight markings are given on the rear of seat. Turn adjustment knob (A) for a firm or soft ride. Seat suspension will function properly relative to operator's weight.
