Use Differential Lock

PY42612-UN-31JUL17

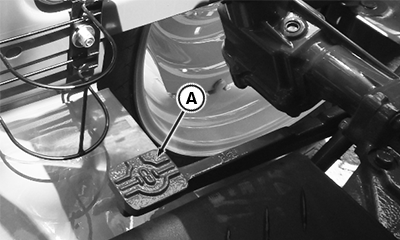

A - Differential Lock Pedal

CAUTION: DO NOT operate tractor at high speed or attempt to turn with differential lock engaged.

IMPORTANT: To prevent damage to drive train, DO NOT engage differential lock when one wheel is spinning and the other is completely stopped by the respective brake.

When one wheel starts to lose traction, engage differential lock by depressing pedal (A) down.

Keep the pedal pressed till the traction at both the tires equalizes and tractor comes out of the ditch. If lock does not disengage, depress one brake pedal and then the other.

If tires repeatedly slip, then get to traction, then slip again, hold pedal in the engaged position.
