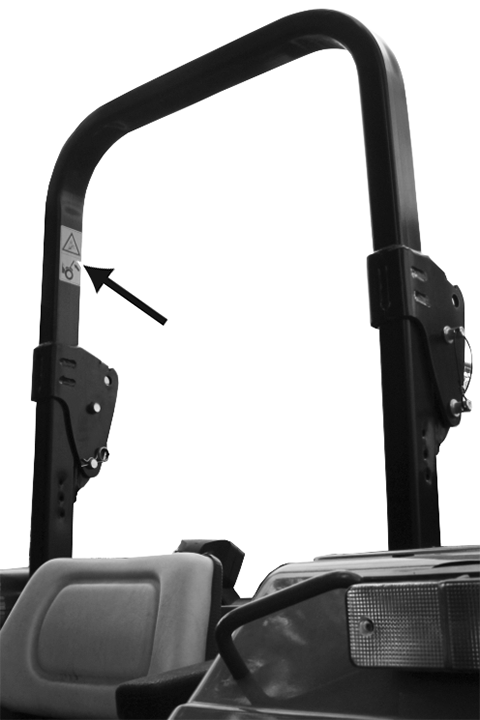

ROPS in Normal Position (Applicable If Tractor Is Equipped with ROPS)

PY42616-UN-31JUL17

On Right Side of ROPS

PY15860-UN-23SEP13

CAUTION: Avoid crushing injury or death during rollover.

Use Foldable ROPS and Seat Belt Properly.

If this machine is equipped with a foldable rollover protective structure (ROPS), keep the ROPS in the fully extended and locked position.

• USE a seat belt when you operate with a ROPS in the fully extended position.
• Hold the latch and pull the seat belt across the body.
• Insert the latch into the buckle. Listen for a click.
• Tug on the seat belt latch to make sure that the belt is securely fastened.
• Snug the seat belt across the hips.

If this machine is operated with the ROPS folded (for example, to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded. Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.
