Change Engine Oil and Filter

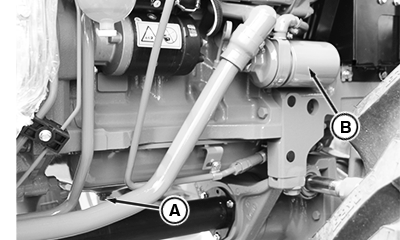

PY42618-UN-31JUL17

A - Engine Oil Drain Plug

B - Engine Oil Filter

NOTE: Change oil and filter a minimum of once a year.

1. Run engine to heat oil.

2. NOTE: The approximate inch engine crankcase oil capacity is 8.5 L (9 qt.)

   Remove oil drain plug (A) and drain oil.

3. Replace engine oil filter (B) while changing oil. Apply a film of oil on the new oil filter gasket and install new filter. Hand tighten plus 1/2 turn.

4. Install drain plug.

5. IMPORTANT: Change engine oil every 125 hours if diesel fuel has a sulfur content greater than 0.7 percent.

   Add seasonal viscosity grade oil. (See Fuels, Lubricants and Coolant section.)

   Item	Measurement	Specification
   Engine Crankcase Oil	Capacity	8.5 L (9 qt.)

   NOTE: Engine oil should be changed annually as a minimum.
