Tighten Bolts—Rear Axle

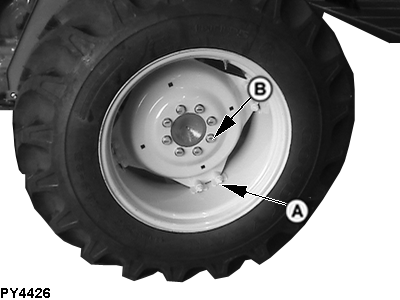

PY4426-UN-15JUN06

A - Rim-To-Disk Bolts

B - Disk-To-Flange Bolts

Tighten bolts in the following locations to specifications:

Item	Measurement	Specification
Rear Axle Rim-to-Disk	Torque	245 N˙m (180 lb-ft)
Rear Axle Disk-to-Flange	Torque	550 N˙m (406 lb-ft)
