Tread Setting—Multi-Position MFWD Wheels (If equipped)

LV602-UN-22APR94

Tread Setting—Multi-Position MFWD Wheels

Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished out operations without disassembling the wheel.) When Changing MFWD wheels from one side to other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. (See Select Front Tire Rolling Direction.)

The relationship of the wheel disk and rim in obtaining the different tread setting is shown in the diagrams, before attempting to change tread settings, will save unnecessary labour.

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub nuts to specification. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
MFWD Wheels
MFWD Wheel Rim-to-Disk Nuts	Torque	245 N•m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts	Torque	310 N•m (228 lb-ft)

NOTE: Tread settings are measured at bottom centerline of tire.

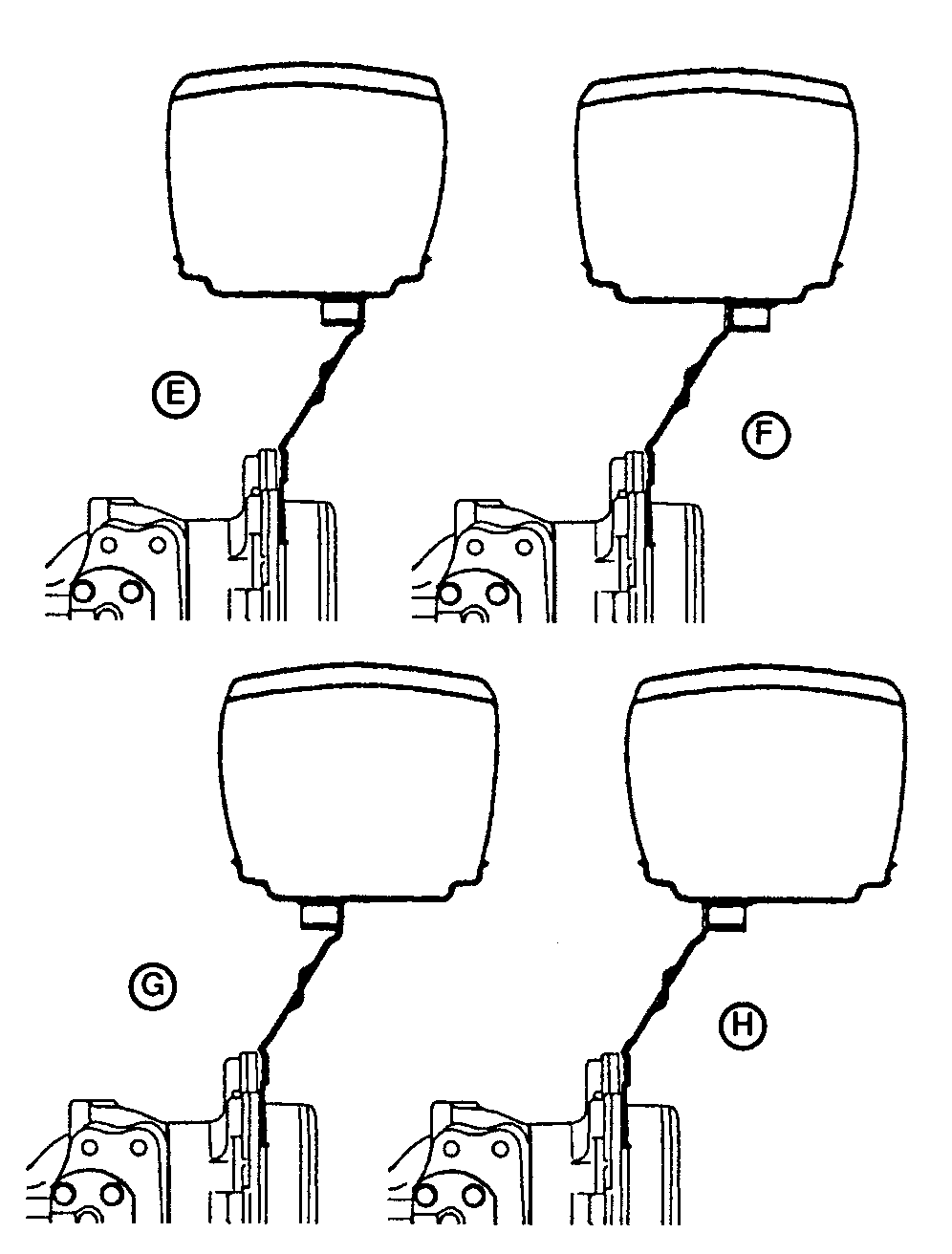

MULTI-POSITION MFWD WHEELS TREAD WIDTH Centerline-to-Ccenterline
	Diagram
Tire	A	B	C	D	E	F	G	H
9.5-24, 8 PR	1340 mm (52.8 in.)	1452 mm (57.2 in.)	1493 mm (58.8 in.)	1605 mm (63.2 in.)	1640 mm (64.6 in.)	1753 mm (69.0 in.)	1792 mm (70.6 in.)	1905 mm (75.0 in.)
11.2-24, 8 PR	1342 mm (52.8 in)	1454 mm (57.2 in)	1545 mm (60.8 in)	1657 mm (65.2 in)	1642 mm (64.6 in)	1754 mm (69.1 in)	1845 mm (72.6 in)	1957 mm (77.0 in)
12.4-24, 8 PR	1381 mm (54.3 in.)	1490 mm (58.6 in.)	1583 mm (62.3 in.)	1692 mm (66.6 in.)	1581 mm (62.2 in.)	1690 mm (66.5 in.)	1783 mm (70.2 in.)	1892 mm (74.5 in.)
ªInterference (Do not use)
