Tow Tractor

CAUTION: NEVER tow the tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.

IMPORTANT: DO NOT tow any tractor faster than 16 km/h (10 mph) if oil temperature is below 0°C (32°F).

To avoid damaging transmission-hydraulic system, observe the following precautions:

With Dipstick

NOTE: Dipstick is provided in tractors with the single clutch option.

1.

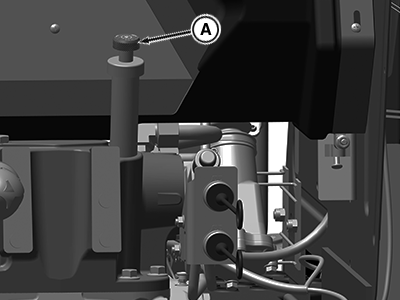

   APY02494-UN-05MAR18

   A - Transmission/Hydraulic Oil Dipstick

   Be sure that transmission-hydraulic system oil is to the full mark on the dipstick (A). If the tractor is to be towed with the front wheels raised, add 1 liter of oil for each 90 mm (3-1/2 in.) The wheels are raised. DO NOT raise front wheels more than 305 mm (12 in) above ground.

   NOTE: After transporting tractor, drain oil that was added for towing.

---




2. Make sure that the MFWD is disengaged.

3. Make sure that the differential lock is disengaged.

4. Make sure that range and gear levers are in neutral.

With Sight Glass

NOTE: Sight glass is provided to the tractors with Reverse PTO option and for the dual clutch double PTO wet clutch variant.

1.

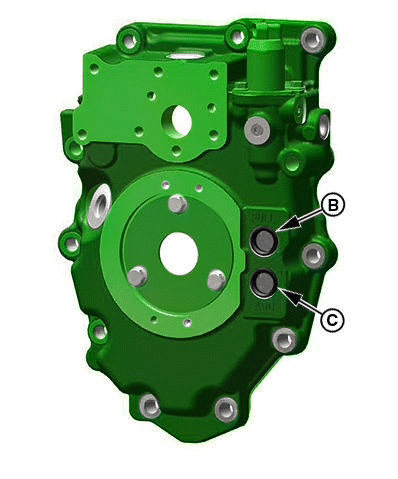

   APY12803-UN-02MAY24

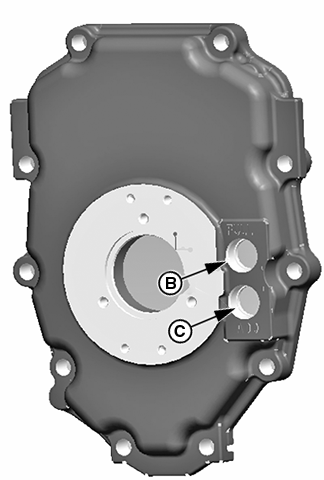

   For Dual Clutch Dual PTO Variants


   APY12858-UN-05OCT18

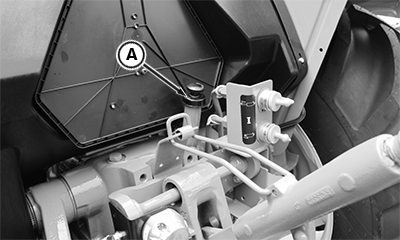

   PY42578-UN-31JUL17

   A - Transmission/Hydraulic Oil Filler Port

   B - Full Level Mark

   C - Low-Level Mark

   Be sure that transmission-hydraulic system oil is to the full mark on the sight glass (B). If the tractor is to be towed with the front wheels raised, add 1 liter of oil for each 90 mm (3-1/2 in.) The wheels are raised. DO NOT raise front wheels more than 305 mm (12 in) above ground.

   NOTE: After transporting tractor, drain oil that was added for towing.

---




2. Make sure that the differential lock is disengaged.

3. Make sure that range and gear levers are in neutral.
