Change Transmission-Hydraulic Oil and Filter—With Oil Dipstick

NOTE: Dipstick is provided to the tractors with Dual PTO option.

PY6278-UN-09OCT06

Transmission Drain Plug

PY42583-UN-31JUL17

Drop Housing Drain Plug

PY42585-UN-31JUL17

APY12805-UN-04SEP18

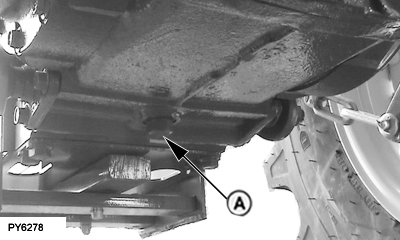

A - Transmission Case Drain Plug

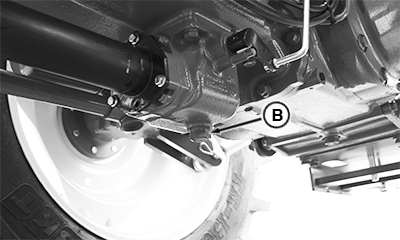

B - MFWD Drop Housing Drain Plug

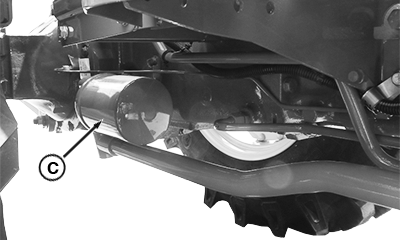

C - Oil Filter

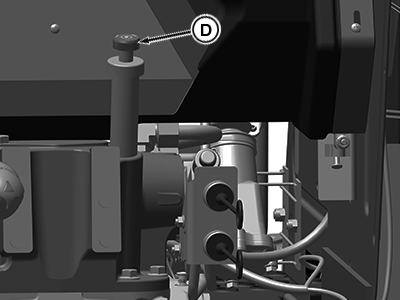

D - Dipstick

1. Lower rockshaft to remove trapped oil.

2. NOTE: The approximate transmission case oil capacity is 38 L (10 gal) for 2-WD tractors and 39 L (10.30 gal) for MFWD tractors.

   For Wet Clutch variants, transmission case oil capacity is 43 L (11.36 gal) for 2- WD and 48 L (12.68 gal) for MFWD tractors.

   Remove drain plug (A) from transmission case and drain out oil. Dispose of waste oil properly.

3. If equipped with MFWD axle, also remove drain plug (B) in drop housing.

4. Replace filter (B) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

5. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants, and Coolant section.)

   Item	Measurement	Specification
   Transmission Oil (2-WD)	Capacity	38 L (10 gal)
   Transmission Oil (MFWD)	Capacity	39 L (10.30 gal)
   Wet Clutch Transmission Oil (2-WD)	Capacity	43 L (11.36 gal)
   Wet Clutch Transmission Oil (MFWD)	Capacity	48 L (12.68 gal)

6. Check oil level at dipstick (D) after filling, and again after operating for five minutes.
