Clean Transmission-Hydraulic Pickup Screen—With Sight Glass

NOTE: Sight glass is provided to the tractors with reverse PTO option.

PY7315
PY7315-UN-03JUL07

APY12857
APY12857-UN-05OCT18

APY12856
APY12856-UN-05OCT18

For Dual Clutch Dual PTO variant

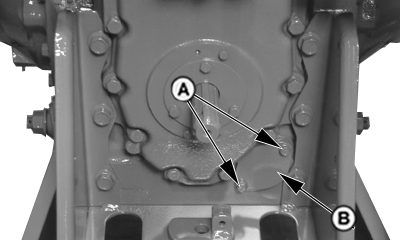

A - Cap Screws (2 used)

B - Screen Cover

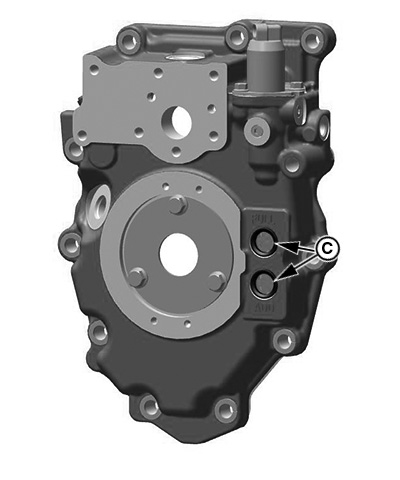

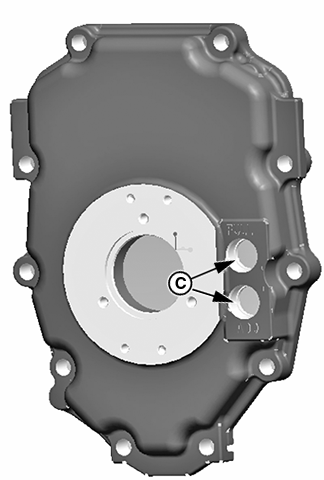

C - Sight Glass

  1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

  2. Remove two cap screws (A) and remove screen. Examine screen for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

  3. Carefully install screen so the front of screen is inserted in hole at front of differential case.

  4. Fill system with transmission-hydraulic oil. (See Changing Transmission-Hydraulic Oil and Filter in this section.)

  5. Check oil level at sight glass (C) after filling, and again after operating for 5 minutes.
