Seven-Terminal Outlet (Wet Clutch)

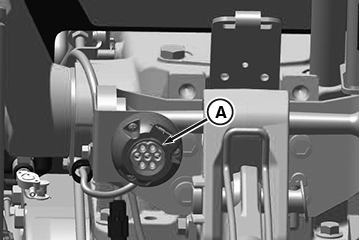

APY12859-UN-23OCT18

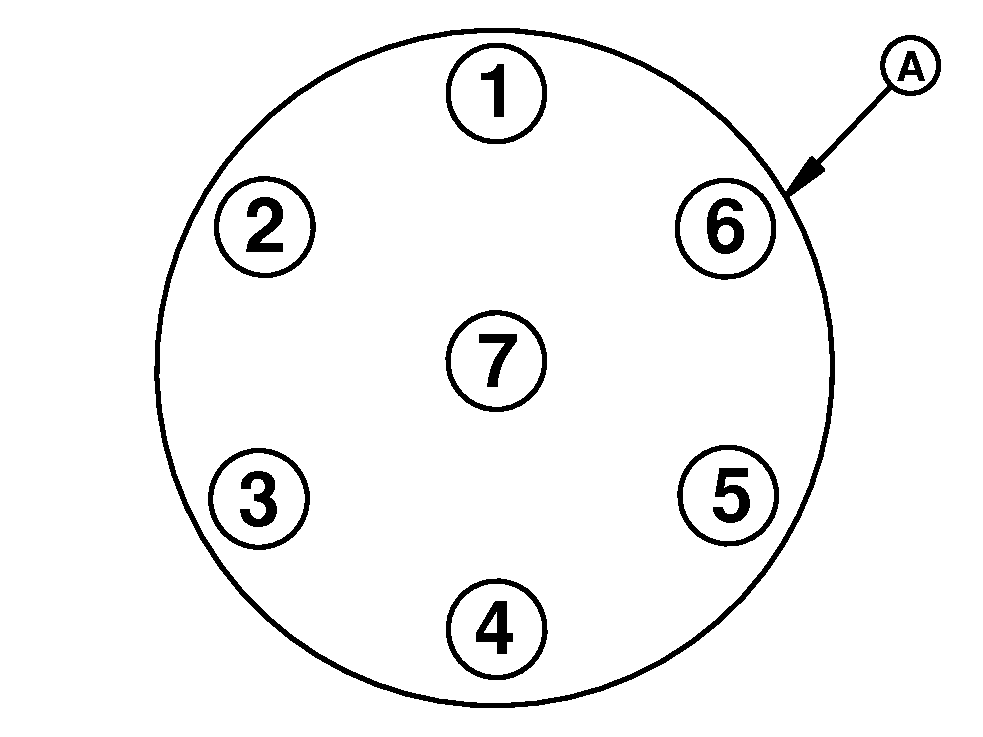

APY13069-UN-24OCT18
A - Seven Terminal Outlet
Outlet (A) is used to connect lighting devices on trailer or implements.
NOTE: Matching/ Mating plug is available through your John Deere dealer.
Seven-Terminal Outlet—Functions & Wire Color (Export, ISO1724 Type)
|
Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Left-hand direction indicator light |
Green/ Yellow |
|
2 |
Rear Work Light |
Green |
|
3 |
Common Return |
Black |
|
4 |
Right-hand direction indicator light |
Green/ Black |
|
5 |
Right-hand fender lamps rear position and marker lights, and rear registration plate illumination device1 |
Grey |
|
6 |
Stop Lights |
Blue |
|
7 |
Left-hand fender lamps rear position and marker lights, and rear registration plate illumination device 1 |
Grey/ Blue |
|
1 The rear registration plate illumination device
shall be connected such that no lamp of the device has a common connection
with both contacts 5 and 7
|
RP32883,0000172-19-20181023 |
