Use Go Home Lights (If Equipped)

PY42605-UN-31JUL17

PY11267-UN-27JAN11

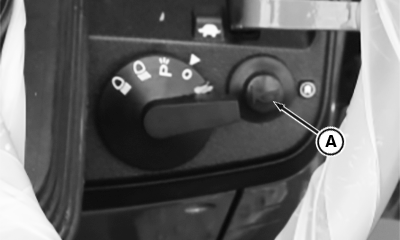

A - Horn Switch

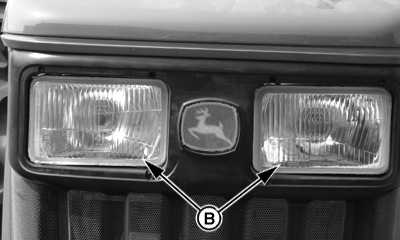

B - Head Lights

NOTE: Go home feature is available with the EQRL variants only.

Go home feature is provided for the operator to have a visibility at night time after the engine is shut off.

1. Shut off engine by turning key switch to off position.
2. Keep the horn switch (A) pressed for 3 to 4 seconds. NOTE: Go home feature activates only when the horn switch is pressed within 10 seconds of turning OFF the key switch.

3. Head lights (B) glows for about 30 seconds, providing visibility to the operator at night time after the engine is shut off.
4. Head lights (B) turns off automatically after 30 seconds.
