Instrument Panel (If Equipped)

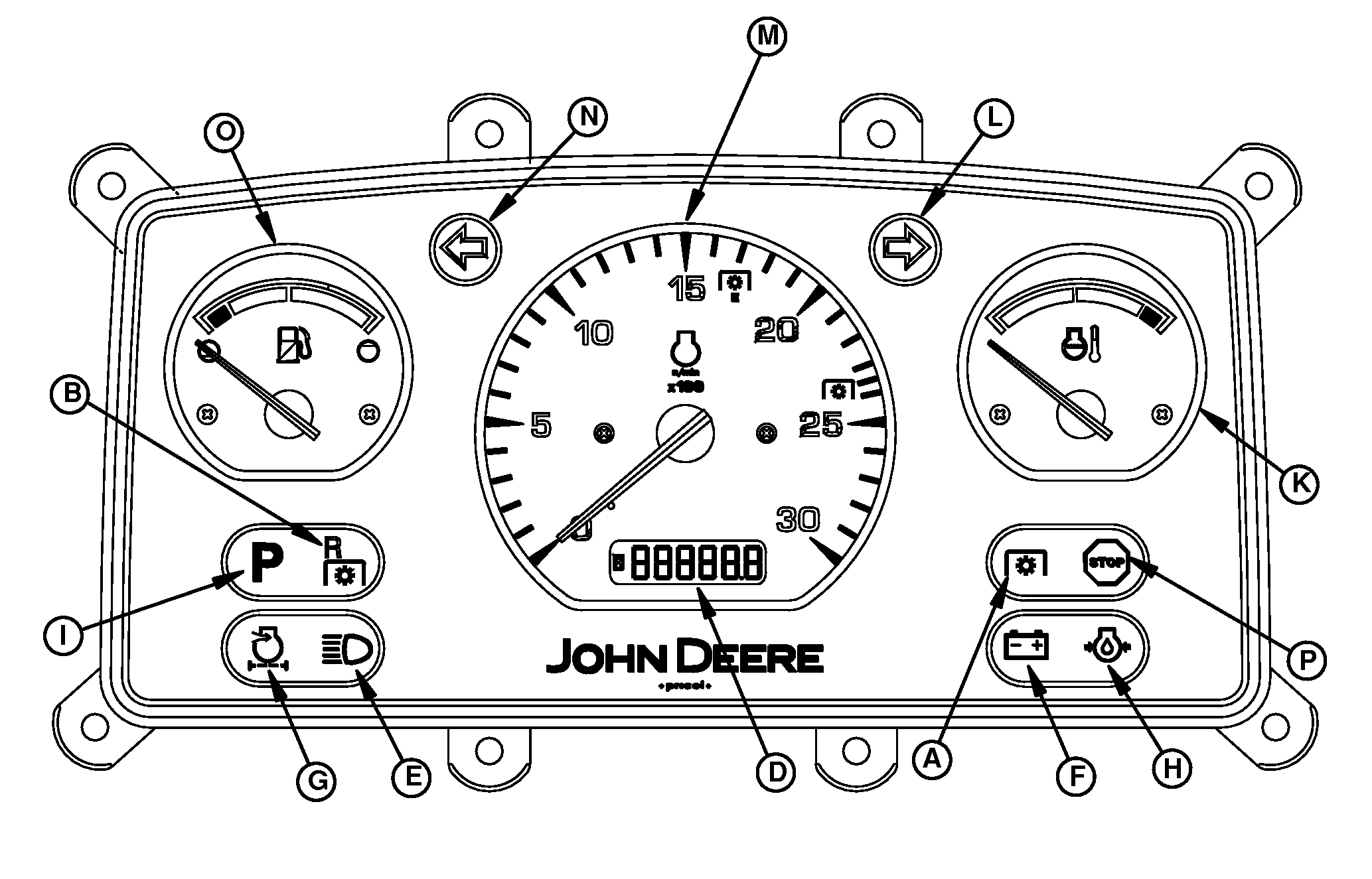

APY42888-UN-10MAY21

For 2400 rpm

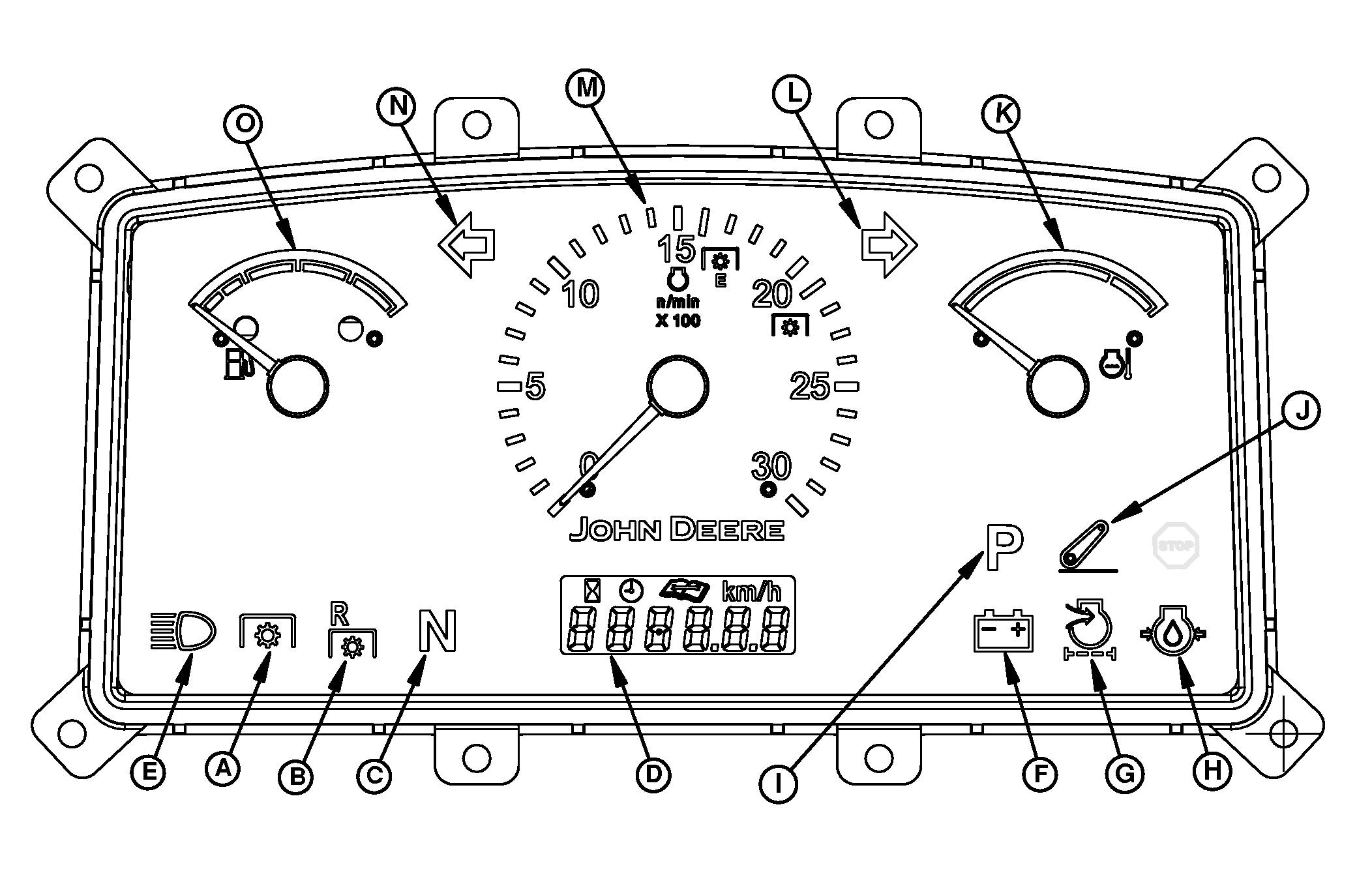

APY40036-UN-15SEP20

For 2100 rpm

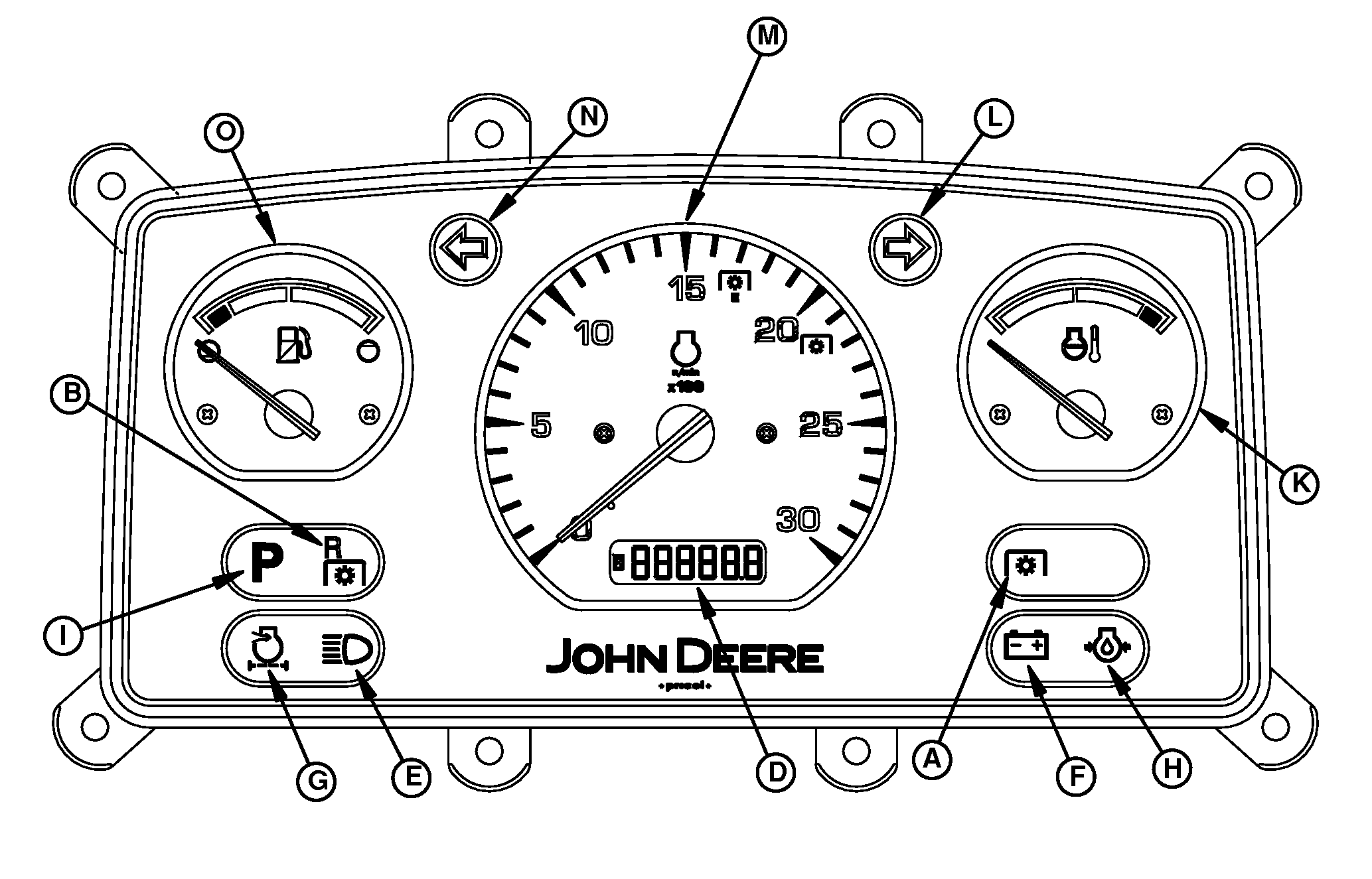

APY40035-UN-15SEP20

For 2100 rpm

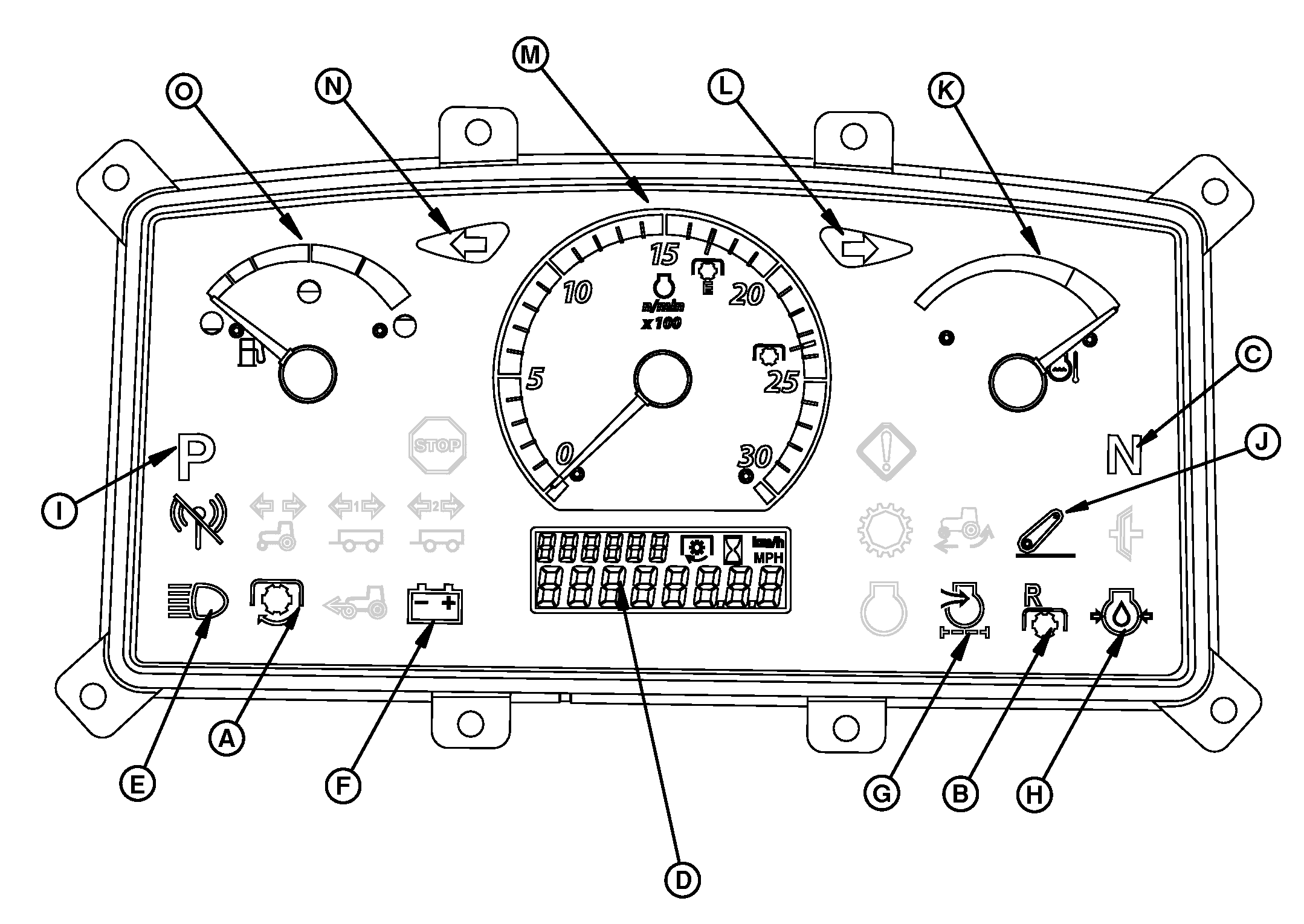

APY40122-UN-11NOV20

For 2400 rpm

A	PTO Engaged Indicator	Illuminates when the rear PTO lever is engaged.
B	Reverse PTO (Not Applicable for Wet Clutch)	Illuminates when the reverse PTO lever is engaged.
C	Neutral (If Applicable)	Illuminates when the gearshift lever is in neutral position. If this indicator is not illuminating, then do not start engine and keep gearshift lever, PTO lever and Reverse PTO lever in neutral condition. If necessary, have the John Deere dealer diagnose vehicle.
D	Hour Meter	Displays Hour Meter, Vehicle Speed in km/h, Job Timer, Service Icon, and volt meter.
E	High Beam Indicator	Illuminates when the headlights are switched on high beam mode.
F	Charging System Indicator	Initially indicator illuminates when key switch brought to run position and it goes off when key switch brought to engine start position.
G	Air Restriction Indicator	Illuminates when air cleaner element is clogged (clean or replace element). If necessary, have the John Deere dealer diagnose vehicle.
H	Engine Oil Pressure Indicator	Oil pressure indicator lights if engine oil pressure is low. Indicator lights when key is turned to RUN position and go out when engine starts.
I	Park Brake	At ignition mode of key switch, park brake indicator light illuminates on display when transmission is in park pawl condition.
J	EQRL Indicator	Illuminates when hitch malfunction occurs. If necessary, have the John Deere dealer diagnose vehicle.
K	Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). Shut off engine IMMEDIATELY to prevent damage. If necessary, have the John Deere dealer diagnose vehicle.
L	Right Turn Indicator	Illuminates when turn signal switch is switched to the right-hand side. It also illuminates when hazard switch activated.
M	Tachometer	Indicates engine speed, revolutions per minute (rpm).
N	Left Turn Indicator	Illuminates when turn signal switch is switched to the left-hand side. It also illuminates when hazard switch activated.
O	Fuel Gauge	Indicates amount of fuel remaining in the fuel tank. When the needle comes to a red zone operator must fill the fuel tank.
P	STOP Indication (Applicable for Wet Clutch)	Illuminates when a serious malfunction occurs. Shut off engine immediately. If necessary, have the John Deere dealer diagnose vehicle.

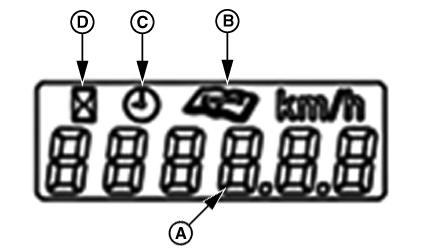

PY11265-UN-24JAN11

A	Vehicle Speed Display	Shows vehicle speed in Km/h.
B	Service Icon	It shows service hours. It initially blinks when service hours are due.
C	Job Timer	Shows tractor running hours for a particular job.
D	Hour Meter Icon	Shows total tractor running hours.

Apart from these 4 data information display boards also display the battery voltage data also.
