STOP Sign Troubleshooting (For Wet Clutch)

APY42890
APY42890-UN-13MAY21

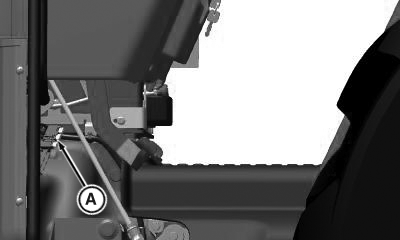

Left-Hand Side of the Tractor

APY42891
APY42891-UN-13MAY21

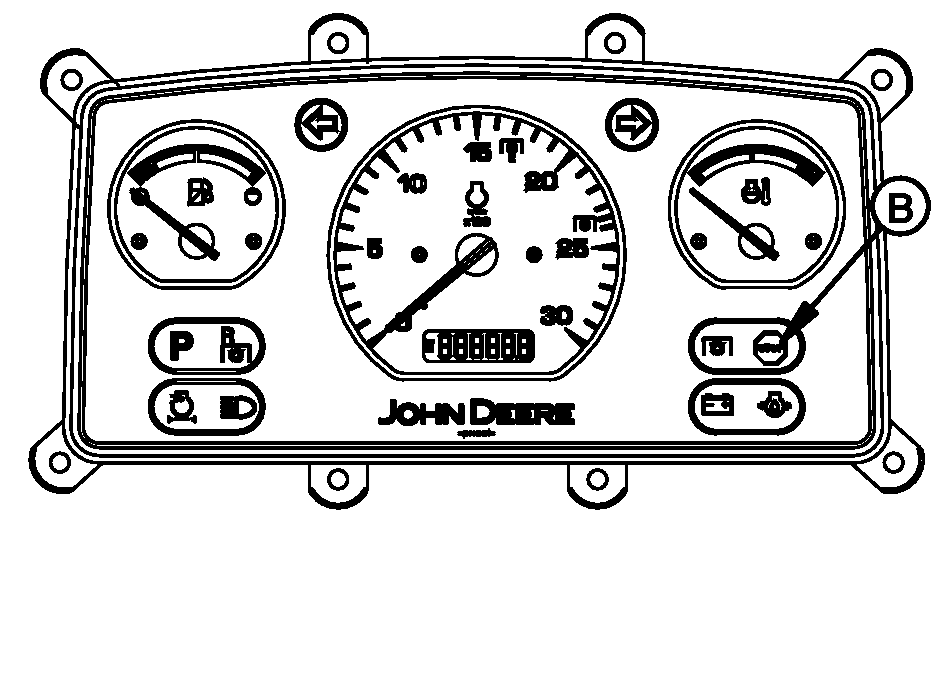

Instrument Cluster for 2400 RPM Tractor

APY42892
APY42892-UN-14MAY21

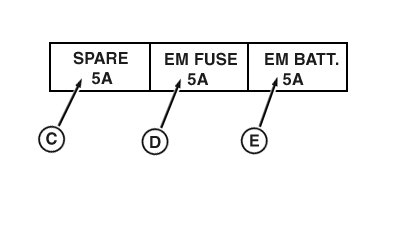

Fuse Box for Wet Clutch (If Equipped)

A - Fuse Box for Wet Clutch (If Equipped)

B - STOP Indicator

C - 5A Spare Fuse

D - 5A EM Fuse

E - 5A EM Battery Fuse

IMPORTANT: Always replace the fuse with the same rating fuse. Do Not replace the 5 A fuse with any higher rating fuse.

NOTE: Turn off the engine and safely park the tractor before performing any troubleshooting. For more information on the STOP sign and buzzer see the ‘Before Starting the Engine (For Wet Clutch Variant, If Equipped) in ‘Operating the Engine’ section.

SymptomProblemSolution

STOP sign (B) and buzzer sound continuous on with engine running above idle rpm.

Fuse (D) or fuse (E) blown.

Replace a blown fuse with the spare fuse (C) provided in fuse box (A).


Serious malfunction or both fuse blown.

Contact the nearest John Deere dealer.

RP32883,0000FCD-19-20210517
