Use Booster Battery

PY8212-19-26FEB08

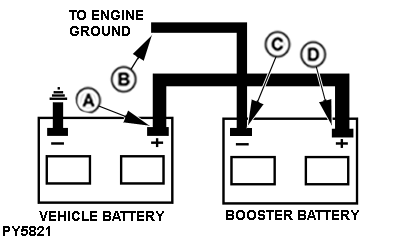

A - Tractor Battery Positive (+) Post

B - Engine Ground

C - Booster Battery Negative (—) Post

D - Booster Battery Positve (+) Post

CAUTION: Battery gas is explosive.

• DO NOT smoke while you charge battery.
• Keep all flames and sparks away.
• DO NOT charge frozen battery.
• DO NOT connect booster battery negative (—) cable to starting vehicle negative (—) terminal.

1. Access battery. (See procedure in Service section.)

2. Connect positive (+) booster cable to booster battery positive (+) post (D).

3. Connect the other end of positive (+) booster cable to battery positive (+) post (A).

4. Connect negative (—) booster cable to booster battery negative (—) post (C).

5. Connect the other end of negative (—) booster cable to engine ground (B), away from battery or starter.
