Right—Hand Console Controls and Switches (For Dual Wet Clutch If Equipped)

PY40623-UN-30OCT17

PY40622-UN-30OCT17

PY42552-UN-31JUL17

PY11260-UN-24JAN11

APY35271-UN-23SEP20

PY40624-UN-30OCT17

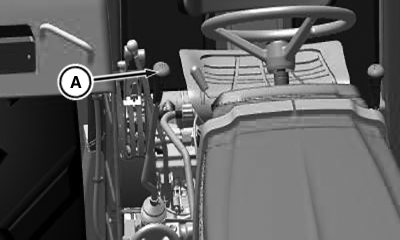

A - Gearshift Lever

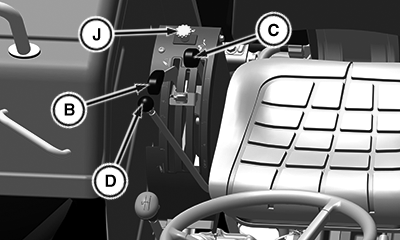

B - Rockshaft position Control Lever

C - Rockshaft Draft control Lever

D - SCV Lever—If Equipped

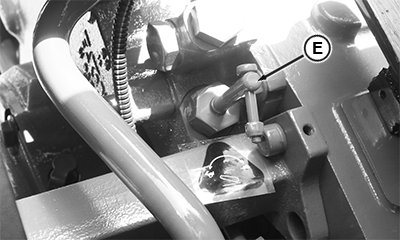

E - Rockshaft Rate of Drop Knob

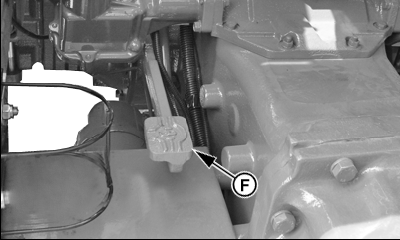

F - Differential Lock Pedal

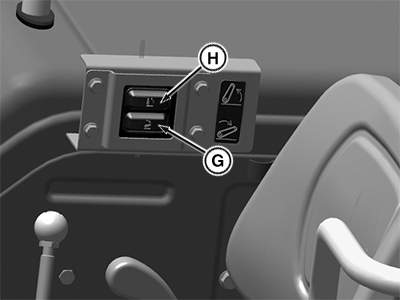

G - Quick Lower Switch (If Equipped)

H - Quick Raise Switch (If Equipped)

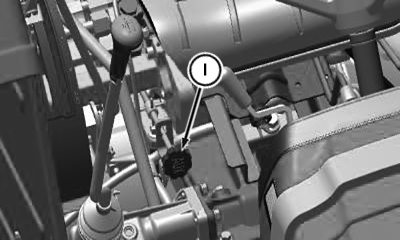

I - Auxiliary Valve Knob

J - EH PTO Knob
