Operate Quick Raise and Lower Switch (If Equipped)

CAUTION: Avoid possible injury or death from tractor movement. Put transmission in PARK before using external raise and lower switches. Stay clear of rotating drive lines and interference points.

QRL Switch (Rear Left Fender)

Press and hold the QRL switch to move the rear hitch.

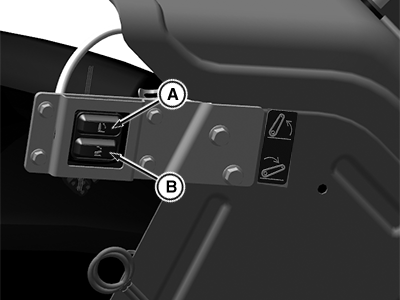

APY35274-UN-23SEP20

Left Rear Fender Side

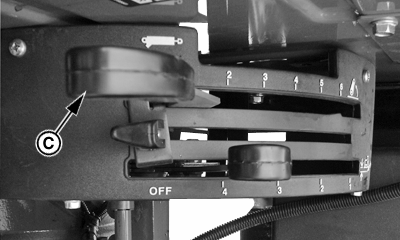

PY11274-UN-28JAN11

A - Quick Raise Switch

B - Quick Lower Switch

C - Position Control Lever

NOTE: Once switch is released implement remains at that position only.

Implement is raised when raise switch (A) is pressed and hold.

Implement is lowered when lower switch (B) is pressed and hold.

Switch can be pressed any number of times till the desired full raise/lower position is attained.

NOTE: External position control (fender mounted) raises or lowers rear hitch at a slower rate and ignores height/depth settings.

IMPORTANT: Once the rear hitch control switch is activated, do not operate hitch through the position control lever.

QRL Switch (Front Right Fender)

IMPORTANT: Never operate the QRL switch when the rear hitch is in full raise/lower position.

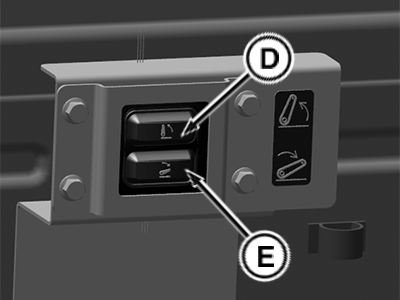

APY35279-UN-02OCT20

Right Front Fender Side

D - Quick Raise Switch

E - Quick Lower Switch

Switch ON the ignition and wait for the beep from the instrument cluster. Check for any fault codes for the QRL system in the instrument cluster. If no fault codes present start the engine and wait for battery charging indicator to go OFF. Press quick raise switch (D) once to raise the rear hitch and press the quick lower switch (E) once to lower the rear hitch completely or to the level set by position control lever. Hitch lift limit by switch (D)  can be adjusted manually to 50%, 75%, or 95% of full lift achieved by position control lever.

IMPORTANT: Never press and hold the QRL switch once raise/lower operation is started.

Never press the QRL switch more that 3 times once raise/lower operation is stared.

NOTE: The system goes in Safe Mode with fault code appearing in the instrument cluster if any abnormal operation of QRL Switch is detected and QRL switch operation stops. The system will be operational only in the next ignition cycle. This is to the safe guard the QRL Motor and ECU from defect.
