Ballast Front End for Transport

CAUTION: Additional front ballast is needed for transporting rear-mounted implements. When implement is raised, drive slowly over the rough ground, regardless of how much ballast is used.

Item	Measurement	Specification
Basic Weight	Weight	63 kg (138.9 lb)

APY61302-UN-24JUN21

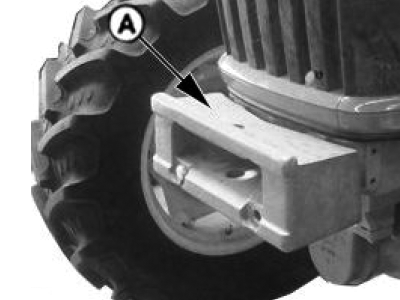

A - Basic Weight

1. Install basic weight (A).

2. Install and tighten weight retaining bolts to specification.

   Item	Measurement	Specification
   Basic Weight Bolts	Torque	385 N·m (284 lb·ft)
