Stop the Engine

1.
   PY42563-UN-31JUL17


   PY42564-UN-31JUL17


   PY40604-UN-30OCT17

   For Wet Clutch (If Equipped)

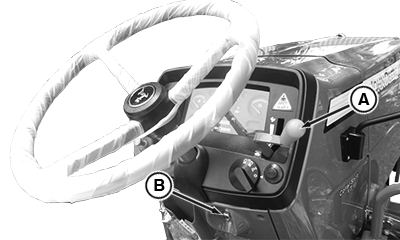

   A - Hand Throttle

   B - Key Switch OFF

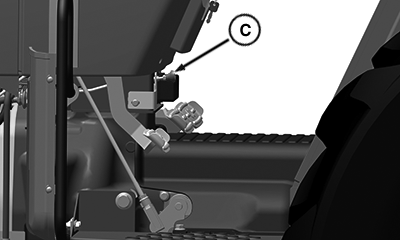

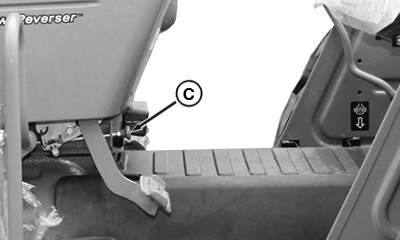

   C - Fuel Shut Off Knob

   Pull hand throttle (A) back to low idle position. Allow engine to idle for one to two minutes.

---




2. Place range lever into neutral. Place speed shift lever in PARK position, and allow engine to idle for 2—5 minutes.

3. Keep standard PTO and reverse PTO or economy PTO lever (If equipped) in disengage position.

4. Lower all equipment to the ground, put all selective control valve levers in NEUTRAL.

5. IMPORTANT: Cooling of the certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

   Turn key switch to the OFF position (B).

   CAUTION: Remove key from the key switch to prevent operation by untrained personnel.

NOTE: Pull manual fuel shutoff knob (C) (at the lower left side of control support) rearward and hold until engine has stopped. (Applicable for Inline Pump, if equipped.)
