Stop the Tractor

PY42554-UN-31JUL17

PY42566-UN-31JUL17

APY02496-UN-06MAR18

PY40609-UN-30OCT17

For Dual Wet Clutch (If Equipped)

PY42600-UN-31JUL17

A - Gear Shift Lever

B - Hand Throttle

C - Draft Control Lever

D - Position Control Lever

E - Fuel Shut Off Knob

1. CAUTION: Always place the gearshift lever in PARK before dismounting. Leaving transmission in gear with engine OFF MAY NOT prevent tractor from moving.

   IMPORTANT: Tractor must be stopped before placing gearshift lever in PARK. Park pawl will not engage, and the transmission may be damaged if tractor is moving.

   Stop the tractor and place gearshift lever (A) in PARK position.

2. Disengage PTO levers.

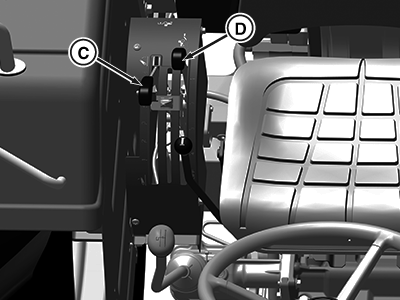

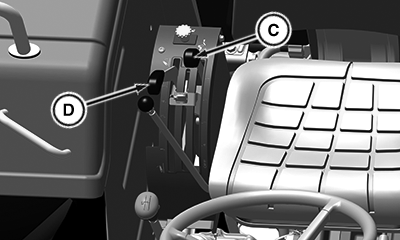

3. Lower all equipment to ground using position control lever (C and D).

4. Put SCV lever in neutral position.

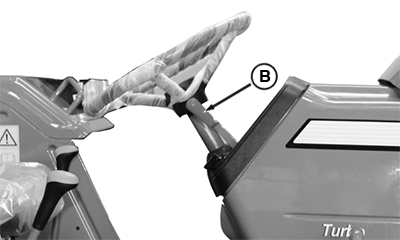

5. Pull hand throttle (B) down to low idle position. Allow engine to idle for one to two minutes.

   IMPORTANT: Cooling of the certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

6. CAUTION: Remove the key from the key switch to prevent operation by untrained personnel.

   Turn key switch to OFF position.

   NOTE: Pull manual fuel shutoff knob (E) (at the lower left side of control support) rearward and hold until engine has stopped (Applicable for Inline Pump, if equipped.)
