Set Control Lever Stop

  1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated.

    APY02489
    APY02489-UN-05MAR18

    PY40611
    PY40611-UN-30OCT17

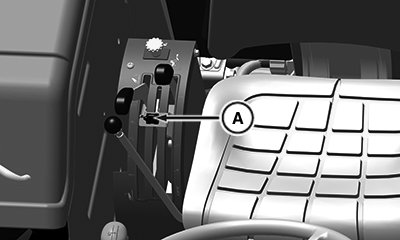

    For Dual Wet Clutch (If Equipped)

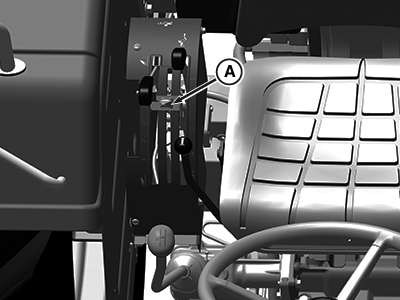

    A - Lever Stop

    Operate implement for a few minutes to determine proper depth or height.


  2. Loosen lever stop (A), and slide against the position control lever. Lock stop in position by turning in a clockwise direction. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.

SJ15074,000031D-19-20180312
