Attaching Implements to 3-Point Hitch

1.

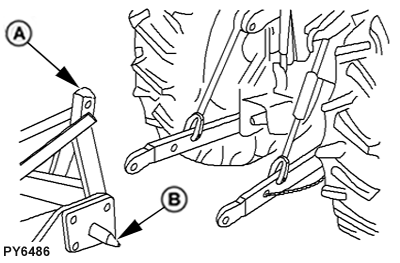

   PY6486-UN-13MAR07

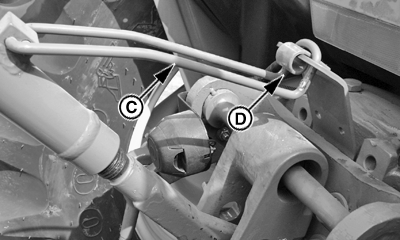

   PY11302-UN-07JAN11

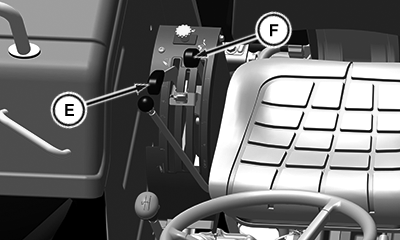

   PY40613-UN-30OCT17

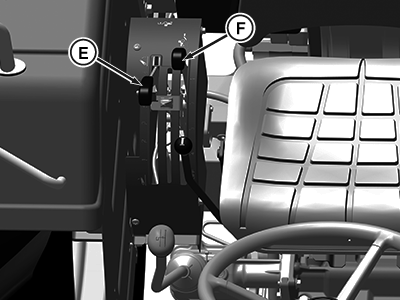

   For Dual Wet Clutch (If Equipped)


   APY02490-UN-05MAR18

   A - Implement

   B - Implement Hitch Pins

   C - Center Link Locking Clip

   D - Tab

   E - Rockshaft Position Control Lever

   F - Rockshaft Draft Control Lever

   Be sure that drawbar will not interfere. If necessary, move the drawbar ahead, or remove it. Check for any other potential interference.

---




2. CAUTION: Prevent unexpected movement of rockshaft by placing draft sensing lever in the forward or OFF position before attaching implement to hitch.

   Back tractor up to implement (A) so hitch points align. Place transmission in neutral (N), stop the engine and engage brakes BEFORE leaving the tractor seat.

3. Slip draft links over implement hitch pins (B), and retain with quick-lock pins.

   NOTE: Locking pins can be stored on draft links (through holes in the sway chain ears) when not in use.

4. To remove center link from the transport hook, lift center link locking clip (C), and rotate tab (D) to rear of center link clip.

5. Attach center link to implement top mast.

6. Adjust center link and lift links as necessary. (See Leveling the Hitch in this section.)

7. CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-Point Hitch, check full range of operation for interference, binding, or PTO separation.

   Using Rockshaft Position Control Lever (E), lower and raise implement slowly and check for any point of interference.
