Connect Single-Acting Cylinder

APY02491
APY02491-UN-05MAR18

PY40614
PY40614-UN-30OCT17

For Dual Wet Clutch (If Equipped)

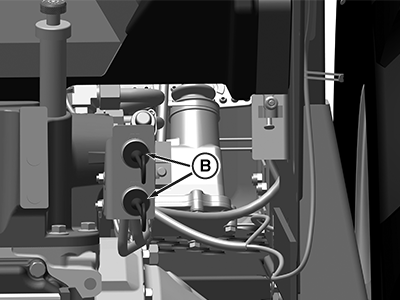

APY02492
APY02492-UN-05MAR18

For Single Clutch Variant

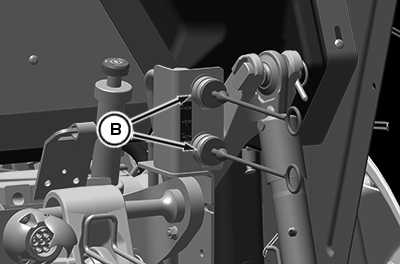

PY40694
PY40694-UN-09MAR18

For Dual Clutch Variant

A - SCV Lever

B - SCV Outlet

In order for lever (A) to work properly, a single-acting cylinder should be connected only to extend hose SCV outlet.

IMPORTANT: Volume of oil required to extend cylinder must not lower transmission-hydraulic oil level below lower sight glass. Check oil level with cylinder fully extended. (See Check Transmission-Hydraulic System Oil Level in Service—50 Hours section.)

Push SCV control lever full forward to use float position to lower single-acting cylinder.

Float position allows a cylinder to extend and retract freely and uses no engine power.
