Neutral Lever Position

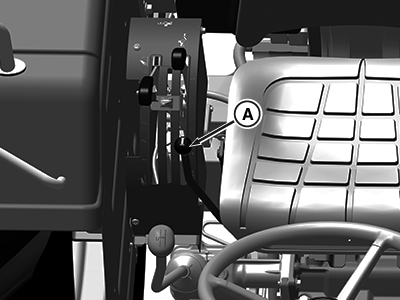

APY02491-UN-05MAR18

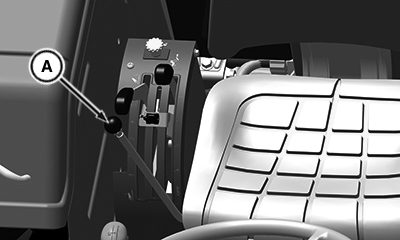

PY40614-UN-30OCT17

For Dual Wet Clutch (If Equipped)

A - SCV Lever

Spring pressure brings lever (A) back to centered position (except when lever is fully forward in the ”Float” position). When the control levers are in the centered position, the remote cylinder is hydraulically locked in position.
