Extend/Retract Cylinder

APY02491-UN-05MAR18

PY40614-UN-30OCT17

For Dual Wet Clutch (If Equipped)

PY6495-UN-15MAR24

Cylinder

A - SCV Lever

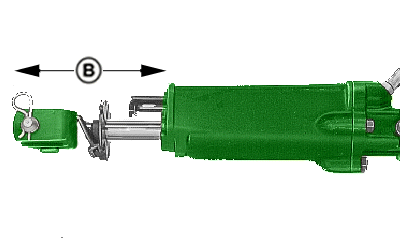

B - Extend and Retract Cylinder

Extending Cylinder

Pull lever (A) to the rear of neutral and hold it against spring pressure. This extends cylinder (B) (up arrow) connected to couplers and in most cases raises implement. Lever returns to neutral when released.

Retracting Cylinder

Push lever (A) forward and hold it against spring pressure. This retracts cylinder (B) connected to SCV couplers and in most cases lowers implement. Lever returns to neutral when released.

Float Position

Push lever full forward into detent to operate Float feature. Float operation allows the cylinder to extend and retract freely, such as when an implement follows ground contour.

IMPORTANT: When ”Float” is not needed, manually move lever back to neutral position to prevent accidental use of ”Float”.
