Operate Tractor Standard PTO (For Single Wet Clutch If Equipped)

PY42562-UN-31JUL17

PY40692-UN-28FEB18

A - Hand Throttle Lever

B - PTO Indicator Light

C - Operator Alert Indicator

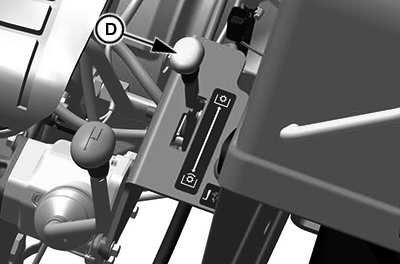

D - PTO Shift Lever

1. Start engine and push hand throttle lever (A) forward until the tachometer indicates PTO rated speed of 2376 rpm for standard 540 operation.

2. NOTE: If operator is NOT on seat when PTO switch is On, Operator Alert Indicator (C) will turn ON

   Press traction clutch pedal and move PTO lever (D) forward to engage standard PTO and move back it for disengaging standard PTO operation.

   CAUTION: Turn key OFF to stop engine, put tractor in park position and make sure that all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.
