Attach Tipping Trailer (If Equipped)

Hydraulic power can be extended to tipping trailer through auxiliary port (A). When auxiliary valve knob (B) is fully screwed-in, hydraulic oil will move to tipping trailer. Use Position control lever for lowering or raising of tipping trailer cylinder.

CAUTION: Carefully check the tipping trailer pipe connection for any leakage. For checking that leakage do not use bare hands as oil may be hot and coming out of the system with full force. Use hand gloves and follow safety rules.

NOTE: When tipping trailer is not attached to tractor, fully screw-out preselector knob, otherwise rockshaft will not function.

NOTE: Ensure tipping trailer hose connection before operating auxiliary knob.

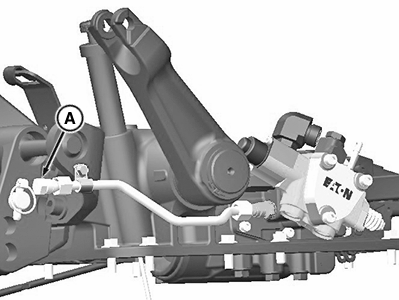

PY47132-UN-25DEC17

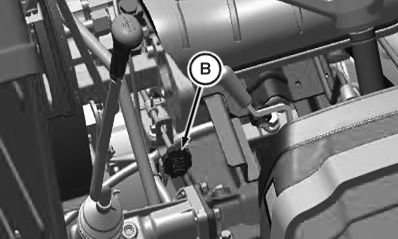

PY47131-UN-24DEC17

A - Auxiliary Port

B - Auxiliary Valve Knob
