Connect Cylinder Hoses

CAUTION:

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

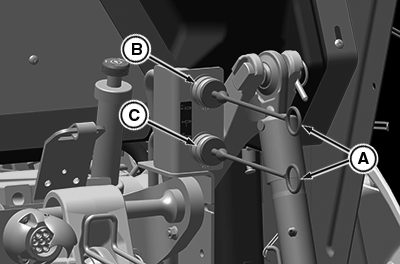

  1. PY40695
    PY40695-UN-09MAR18

    For Dual Clutch Variant

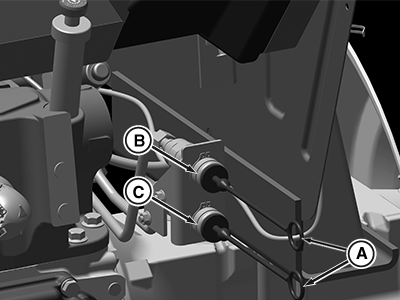

    APY02493
    APY02493-UN-05MAR18

    For Single Clutch Variant

    A - Dust Plug

    B - Coupler

    C - Coupler

    Pull dust plugs (A) from couplers.


  2. Make sure that hose end and couplers are clean.

  3. Coupler (B) receives cylinder extend hose.

  4. Coupler (C) receives cylinder retract hose.

  5. CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses. See your John Deere dealer.

    To connect each hose, push hose tip firmly into coupler. Pull lightly on hose to make sure that positive connection was made.

SJ15074,000047C-19-20180309
