Attach Loader/Dozer (If Equipped)

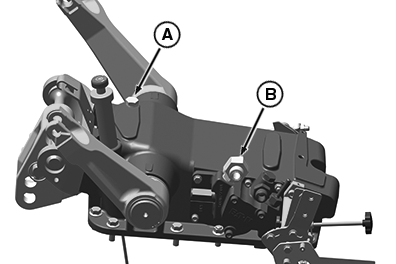

PY40696-UN-13MAR18

.

A - Tank Port (Thread Size - M18x1.5mm)

B - Elbow Fitting (Face Seal Thread - 1-3/16-12 UN)

If a tractor equipped with the loader/dozer application, connect tank line to the tank port (A) and carryover line to the elbow fitting (B).

IMPORTANT: If tank line and carryover line not connected properly then it leads to seize of the transmission.
