Check MFWD Axle Oil Level (If Equipped)

1.
   PY6506-UN-15MAR24

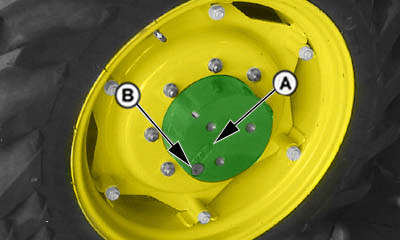

   Oil Fill Mark and Filler Plug


   PY6540-UN-07NOV06

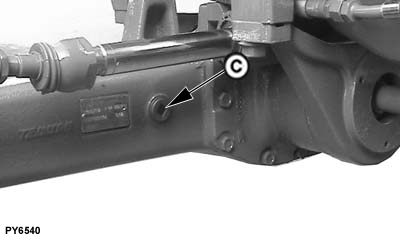

   Oil Fill Plug - DANA Axle

   A - MFWD Oil Fill Mark

   B - MFWD Oil Fill/Drain Plug

   C - MFWD Oil Level Plug

   Park tractor so that oil fill mark (A) on MFWD hub is level with the ground. Remove filler plug (B). Oil level should be even with bottom of the filler plug hole.

---




2. Remove plug (C) to check oil level in axle housing. Oil level should be even with bottom of hole.

3. If level is low, add John Deere HY-GARD® Gear Lubricant or its equivalent. (See Fuels, Lubricants and Coolant section.)
