Replace Fuel Filter Inserts

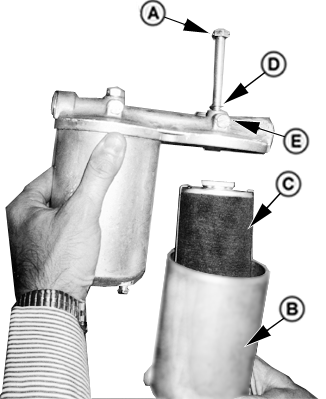

PY4917
PY4917-UN-18APR05

A - Cap Screw

B - Filter Element Bowl

C - Filter Insert

D - Washer

E - Bleed Screw

  1. Remove cap screw (A) and filter element bowl (B).

  2. Take out filter insert (C).

  3. Drain the fuel and clean the bowl.

  4. Install new filter insert.

  5. Reinstall the bowl (B) and tighten screw (A) and washer (D).

  6. Bleed the system from bleed screw (E).

IMPORTANT: Always use new O-ring which comes filter inserts.
