Adjust Rear Hitch Lift (Applicable for EQRL)

IMPORTANT: 3-point linkage height setting or change percentage of lift can be done when 3-point linkage is at down position, if it is not at the down position press quick lower switch to bring 3-point linkage to down position and then start changing lift height setting.

This adjustment is applicable for quick raise switch and hitch lift height by position control lever will remain unaltered.

Rear hitch lift height can be adjusted to a total of 50%, 75% or 95% depending upon the operational requirements.

Lift adjustment can be done as per the following steps.

1.

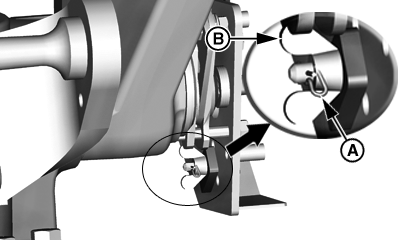

   PY11276-UN-01FEB11

   A - Split Pin

   B - Wing Nut

   Remove Split pin (A).
2. Remove Wing nut (B)

3.

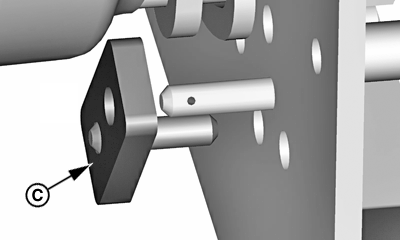

   PY11277-UN-01FEB11

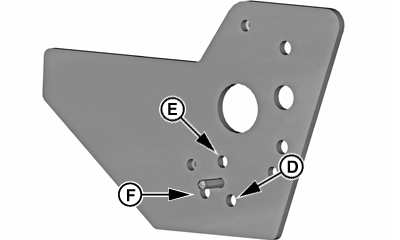

   PY11278-UN-07FEB11

   C - Lock Pin

   D - 50% Height Limit

   E - 75% Height Limit

   F - 95% Height Limit

   Remove lock pin (C) and insert it at the required height range hole.
   1. Put lock pin (C) in the hole (D) for 50% lift height of the hitch.
   2. Put lock pin (C) in the hole (E) for 75% lift height of the hitch.
   3. Put lock pin (C) in the hole (F) for 95% lift height of the hitch.

---
