Lubricate Front Axle

Pivot Pin

PY6524-UN-06NOV06

Right Side of MFWD Axle - DANA

PY6525-UN-06NOV06

Back Side of MFWD Axle - DANA

PY4496-UN-23FEB06

Right Side of 2WD Axle

PY6291-UN-15MAR24

Back Side of Under Front Support

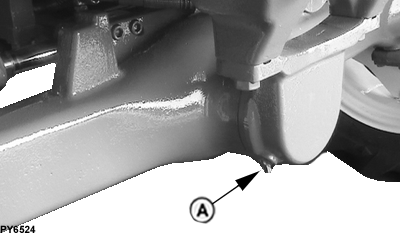

A - MFWD Front Pivot Jerk

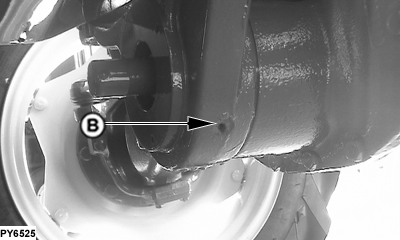

B - MFWD Rear Pivot Jerk

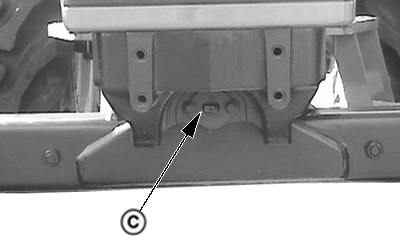

C - 2WD Axle Pivot Pin

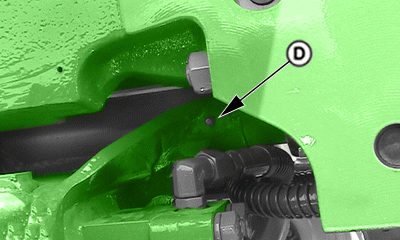

D - 2WD Rear Pivot Jerk

Lubricate MFWD front pivot (A) and rear pivot (B) with several shots of multipurpose grease. Adjustable axle pivot pin (C) also requires lubrication of the front and rear pivot bushing jerks with multipurpose grease. (See Fuels, Lubricants and Coolant section.)

Wheel Spindle

PY44223-UN-27JUN17

2WD

PY44224-UN-27JUN17

MFWD

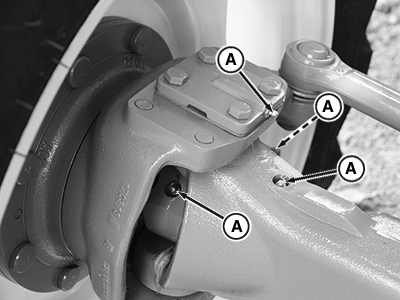

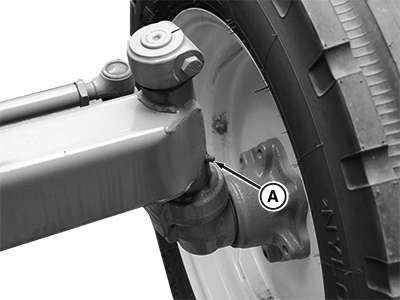

A - Lubrication Points

Lubricate the shown lubrication points (A) with several shots of multipurpose grease.
