Lubricate Rear Axle Bearings
PY44226-UN-27JUN17
Rear Axle Lubrication Points
PY44225-UN-27JUN17
.
PY5998-UN-25JUL06

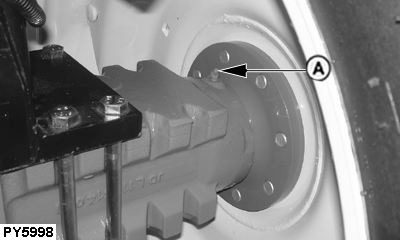

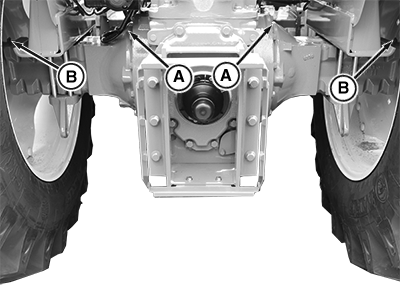

A - Rear Axle Fittings

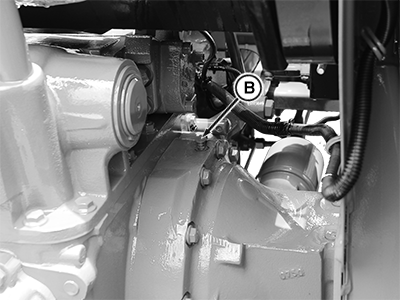

B - Rear Axle Lubrication Points
Lubricate rear axle fittings (A) lubrication points (B) on the both sides, with several shots of multi-purpose grease. (See Fuels, Lubricants and Coolant section.)|
VP27597,00005F7-19-20170627 |
