Operate Foldable ROPS (If Equipped)

PY11376-UN-07JAN11

PY11377-UN-07JAN11

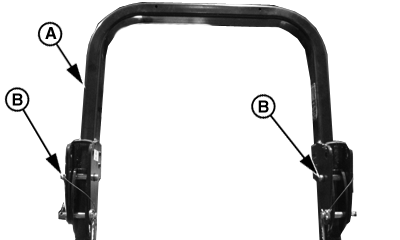

A - ROPS Crossbar

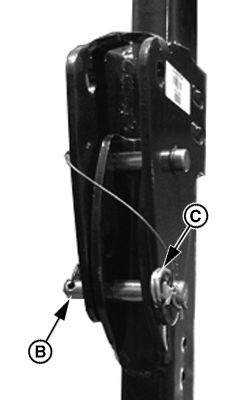

B - Headed Pins

C - Quick-Lock Pins

CAUTION: Make certain all parts are installed correctly if rollover protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to specified torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is altered in anyway by welding, bending, drilling or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS folded (e.g. to enter a low building) drive with extreme caution and DO NOT use seat belt.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

To Lower ROPS Crossbar (A):

1. Remove quick-lock pins (C) and headed pins (B).

2. Lower crossbar (A) of ROPS onto stops.

3. Reinstall pins (B and C) into holes in ROPS to lock crossbar down.

To put ROPS in Operating Position:

1. Lift crossbar (A) of ROPS to position shown.

2. Install pins (B) and quick-lock pins (C).
