Check Toe-In (Two-Wheel Drive Tractor)

PY25132-UN-08JUL15

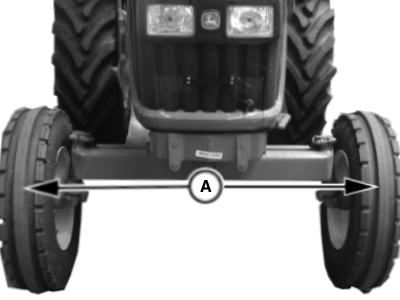

A - Front Axle Toe-In Distance

1. Park machine on level surface.

2. Turn steering wheel so front wheels are in the straight-ahead position. Stop engine.

3. Measure distance (A) between tires at hub level in front of axle. Record measurement and mark the tires.

4. Move tractor back about 1 m (3 ft), so mark is at hub level behind the axle. Again, measure distance between tyres at same point on tyre. Record measurement.

5. Determine the difference between front and rear measurements. If the front measurement is smaller, toe is “in”. If the rear is smaller, toe is “out”.

6. Distance (A) at front of tires should be 0—2 mm for DANA front axle. Adjust toe-in if necessary. (See procedure in this section.)

Toe-In Value Chart
Make	Toe-In Value
DANA FRONT AXLE	0-2 mm
