Clean Transmission-Hydraulic Pickup Screen—With Dipstick

NOTE: Dipstick is provided to the tractors with Dual PTO option.

PY7315
PY7315-UN-03JUL07

PY25145
PY25145-UN-09JUL15

A - Cap Screws (2 used)

B - Screen Cover

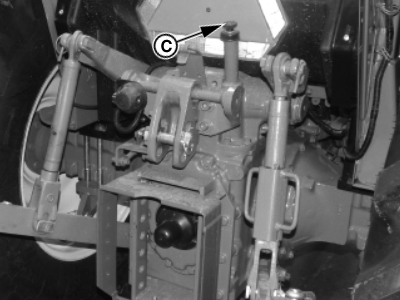

C - Dipstick

Remove two cap screws (A) and remove screen cover (B).

  1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

  2. Remove two cap screws (A) and remove screen. Examine screen for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

  3. Carefully install screen so the front of screen is inserted in hole at front of differential case.

  4. Fill system with transmission-hydraulic oil. (See Changing Transmission-Hydraulic Oil and Filter in this section.)

  5. Check oil level at dipstick (C) after filling, and again after operating for 5 minutes.
