Aim Headlights

1.

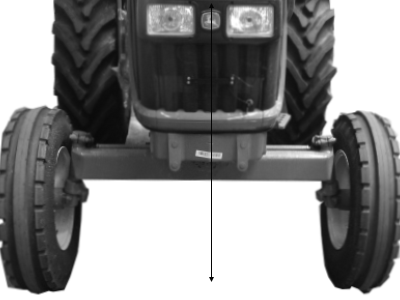

   PY25144-UN-08JUL15

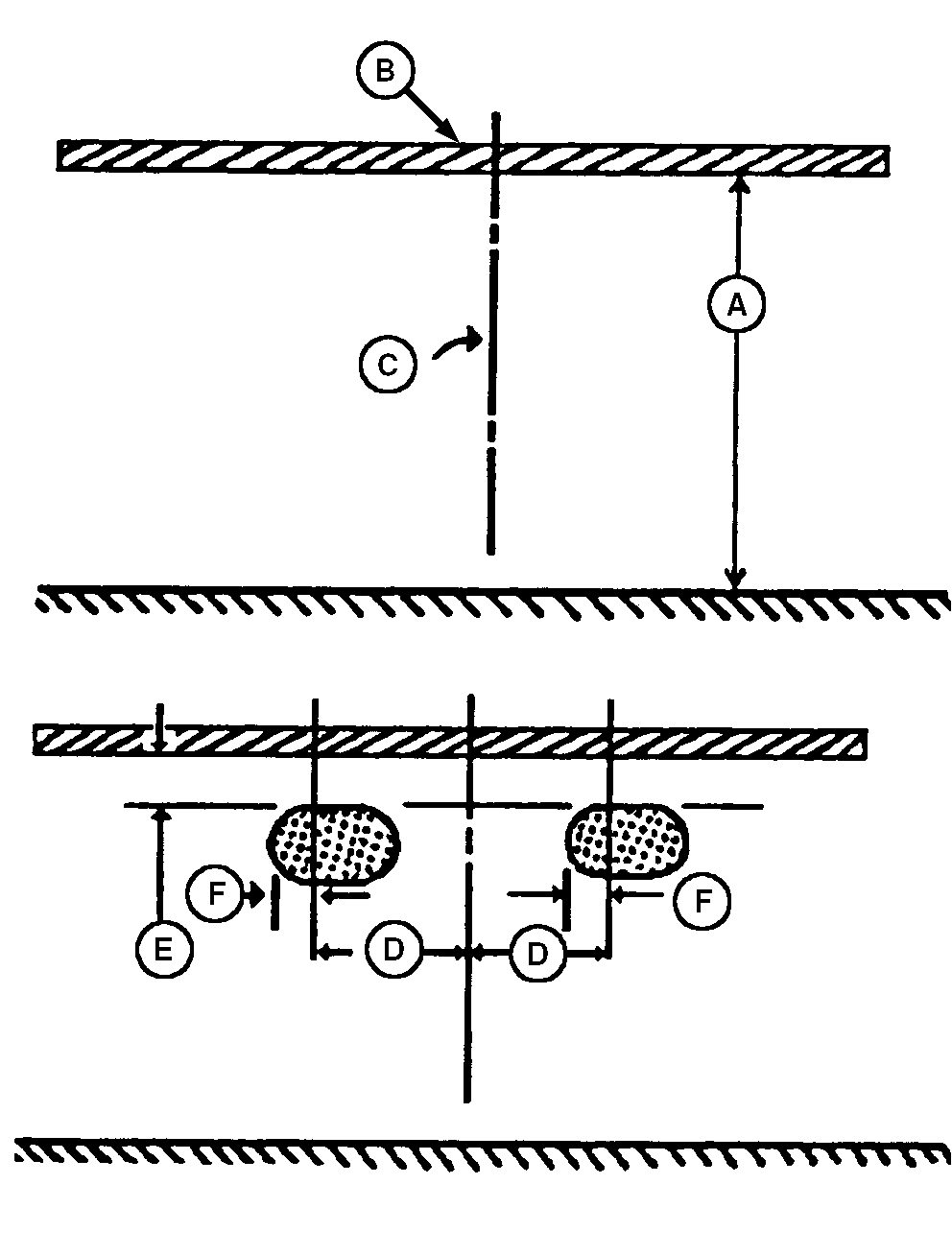

   LV3020-UN-10JUN99

   A - Distance from Top of Hood to the Ground

   B - Masking Tape

   C - Tractor Center Line

   D - 130 mm (5 in) Distance from Center Line

   E - Top of zone

   F - Left Edge of Zone

   Park tractor on the level ground, with lights 8 m (25 ft) from a wall.

---




2. Measure from the top of hood to the ground (A). Place a strip of masking tape (B) on the wall at the same height.

3. Place a piece of tape, folded in the middle to make a point, on the top front center of the hood.

4. Using the hood tape as a guide, sight across steering wheel and hood to locate the tractor centerline. Mark tractor centerline (C) on wall.

5. From the tractor centerline (C), mark a point 130 mm (5 in) out in each direction (D). This mark locates a point directly in front of the center of each headlight.

6. Turn light switch to the low beam position.

7. Locate the small zone of the high beam light projected by each lamp. Cover other lamps if necessary. Top of zone (E) must be 130 mm (5 in) below the tape. Left edge of zone (F) must be 130 mm (5 in) left of the lamp location marked (D).

8. To adjust headlights. (See Adjust Headlights in this section.)
