Replace Air Cleaner Elements

PY17580-UN-06FEB13

PY17581-UN-06FEB13

PY17582-UN-06FEB13

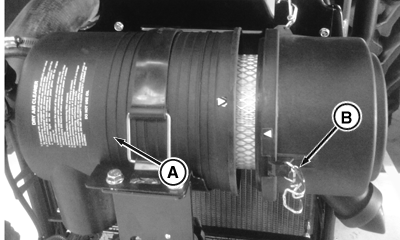

A - Cover

B - Clips

C - Primary Element

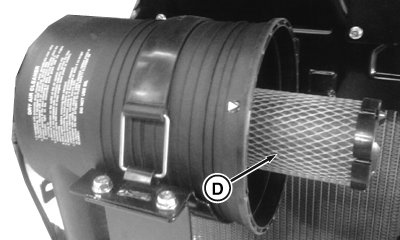

D - Secondary Element

1. Open the hood by unlocking the key. (See Remove Side Screen in Service section.)

2. Release clips (B).

3. Remove cover (A).

4. Remove primary element (C).

5. Clean out any dirt in canister taking care not to damage the secondary filter element.

6. IMPORTANT: Remove secondary element (inner element) ONLY if it is to be replaced. DO NOT attempt to clean secondary element.

   If secondary element is replaced, install new element immediately to prevent dust from entering air intake system.

   Removal of the secondary element (D) is similar to removal of the primary element.

   NOTE: When installing the air cleaner canister, make sure that the dust unloader valve is facing down.

   NOTE: If you are unable to install the clips (B) on the outer cover of the air cleaner, which shows that the primary element is not properly sealed/seated/installed. Install the primary element properly.

7. Install secondary element, primary element and cover.

8. IMPORTANT: Make sure that hood is locked properly and keeps the hood lock key with operator only.

   Close the hood.
