Adjust Headlights

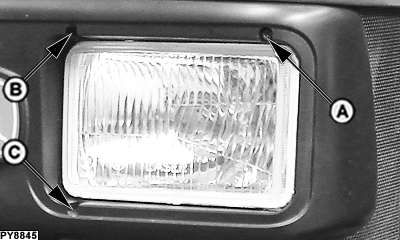

PY8845-UN-22APR09

A - Headlight Mounting Screw

B - Headlight Mounting Screw

C - Headlight Mounting Screw

IMPORTANT: Once done the headlight adjustments, makes sure that hood is locked properly and keeps the hood lock key with operator only.

1. Open the hood.

2. Turn screws (A—C) counterclockwise to lower beam or clockwise to raise beam.

3. To adjust beam in toward center of tractor, turn screw (A) counterclockwise and screws (B and C) clockwise an equal number of turns on each screw.

4. To adjust beam out from center of tractor, turn screws (B and C) counterclockwise and screw (A) clockwise an equal number of turns on each screw.
