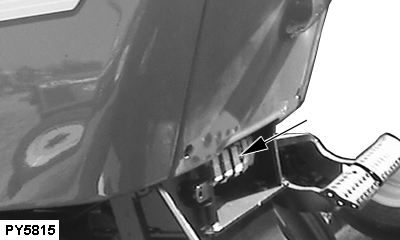

Locate Fuses

PY5815-UN-30JUN06

NOTE: Front key switch panel is removed for photo purposes.

NOTE: In case of damage the fuses or connectors do not replace whole wiring harness, replace only the pig tail connections (split harness).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.
