Use Headlights

PY11360-UN-07JAN11

PY40652-UN-11JAN18

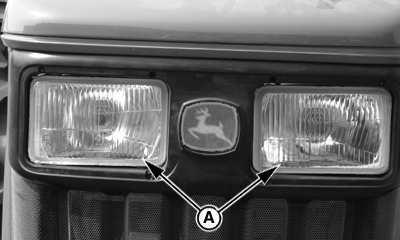

A - Headlights

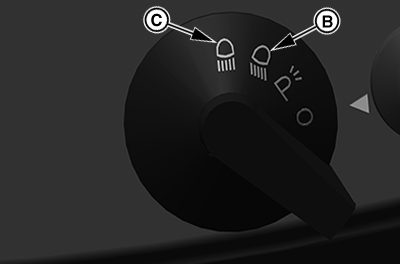

B - Low Beam Headlights, Tail Lights and Park Lights Position

C - High Beam Headlights, Tail Lights and Park Lights Position

Dual-beam headlights (A) are switched on by either low beam headlights (B), high beam headlights (C), switch positions..

Always low beam lights before meeting another vehicle.

Keep headlights adjusted properly. (See Adjust Headlights in Service section).
