Use Turn Signals

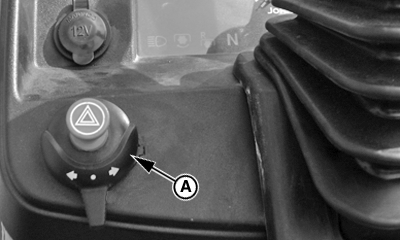

PY11365
PY11365-UN-27JAN11

Turn signals Switch

A - Turn Signal Knob

Move turn signal Knob (A) left to indicate left-hand turn or right for right-hand turn.

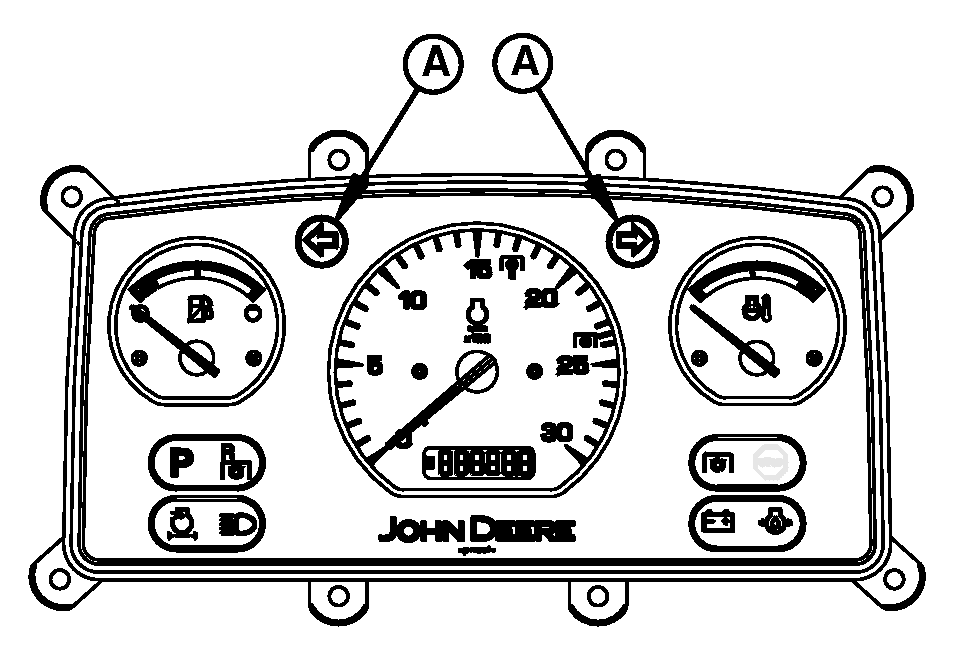

APY40042
APY40042-UN-15SEP20

For 2400 rpm

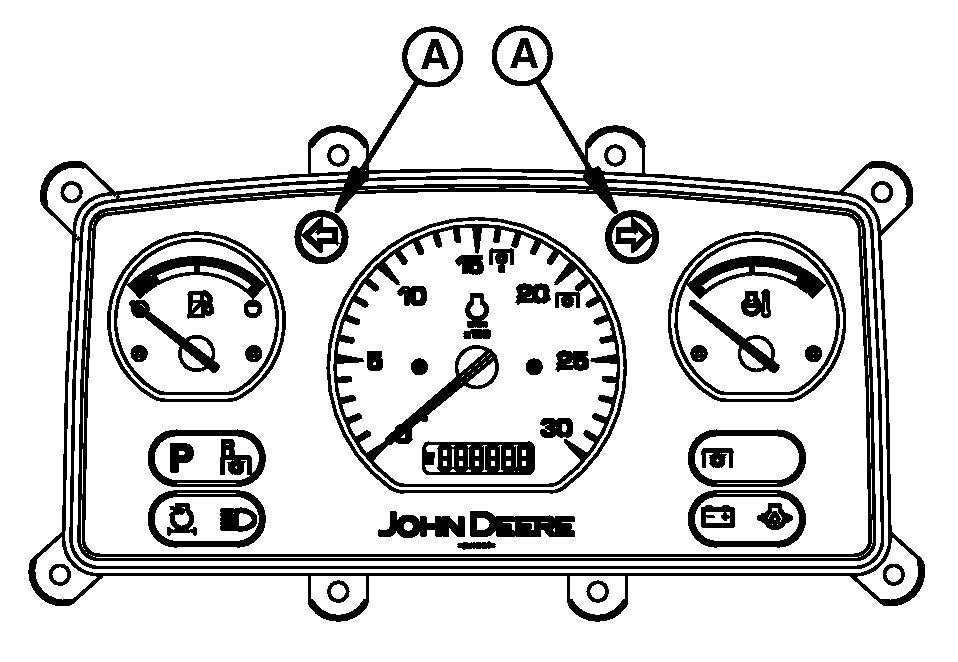

APY40043
APY40043-UN-15SEP20

For 2100 rpm

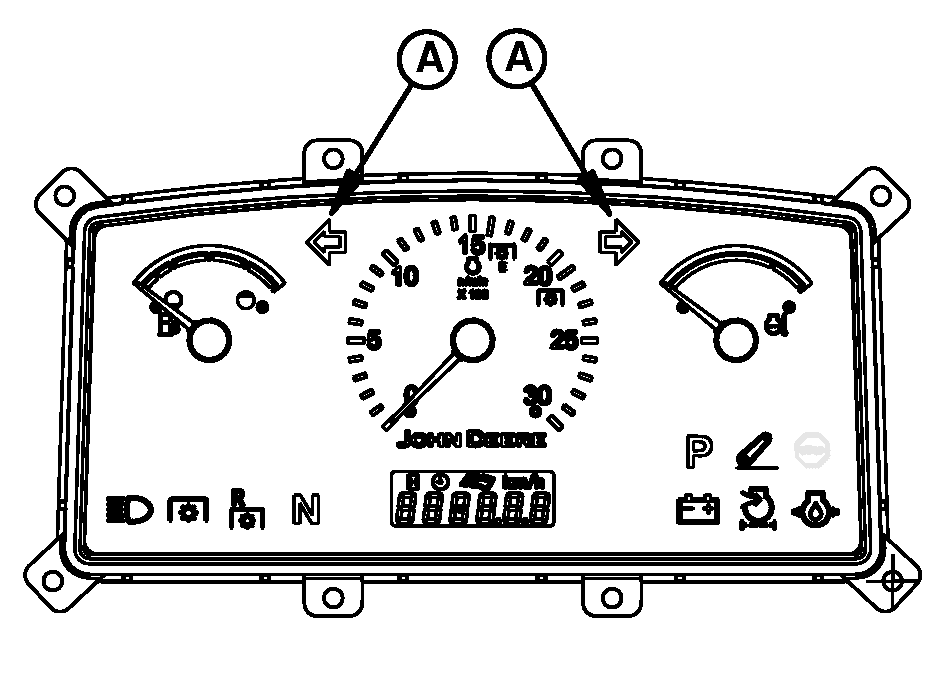

APY40044
APY40044-UN-15SEP20

For 2100 rpm

APY40141
APY40141-UN-03NOV20

For Telematics and Non Telematics (2400 rpm)

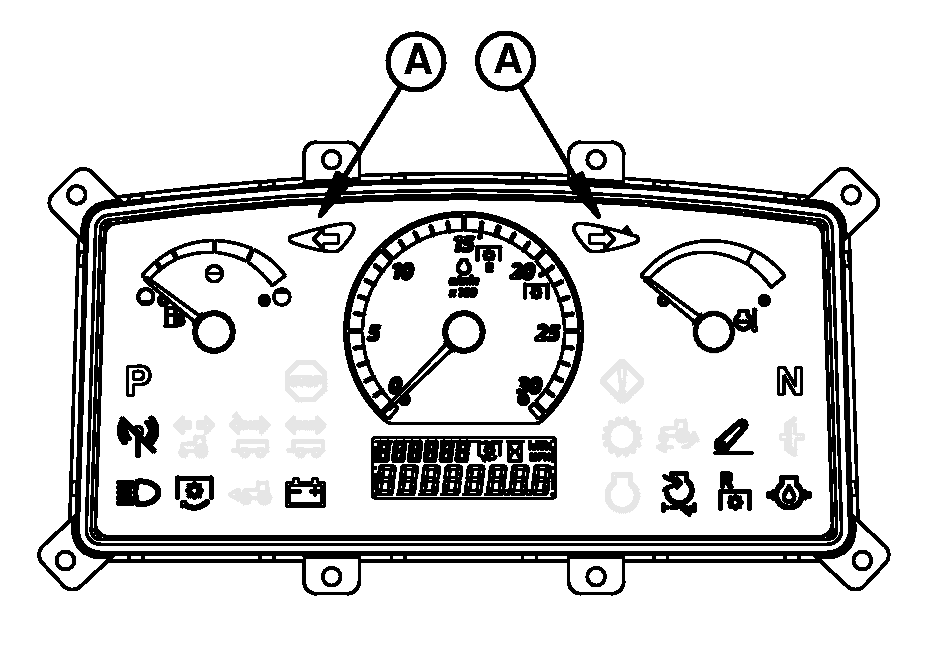

APY40140
APY40140-UN-03NOV20

For Telematics (2100 rpm)

A - Indicator Lights

Indicator lights (A) flashes to signal turn direction.

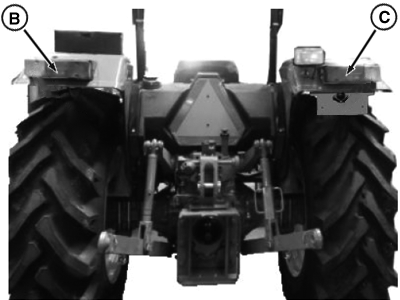

APY41752
APY41752-UN-04NOV20

License Plate and Illumination Lamp (If Equipped)

B - Left—Hand Lights

C - Right—Hand Lights

When the lever is in right side position, front and rear turn lights on the right-hand side (C) flashes. When the lever is in left side position, front and rear turn lights on the left-hand side (B) flashes.

NOTE: Be sure to manually return the lever back to center position after turning.

WKJQUWJ,000089C-19-20201105
