Fill Fuel Tank

CAUTION:

TS202-UN-23AUG88

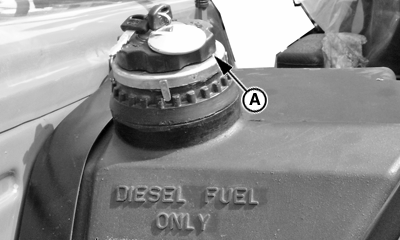

PY11304-UN-07JAN11

Non ULSD Fuel Tank

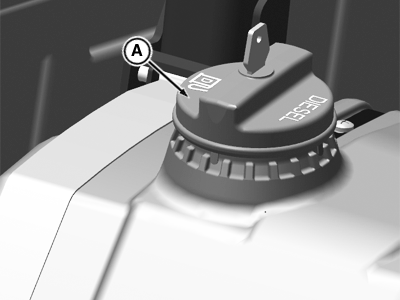

APY36709-UN-07JUN20

ULSD Fuel Tank

A - Fuel Tank Cap

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

Fill fuel tank at end of each days operation. This prevents condensation in tank as moist air cools.

Item	Measurement	Specification
Fuel Tank	Capacity	68 L (18 gal) Approximate

IMPORTANT: The fuel tank uses a sealed filler cap. If a new filler cap is required, always replace it with a sealed cap.

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver, or equivalent, may be added to fuel or bulk storage tank.
