Clean Fuel Tank Strainer (If Equipped)

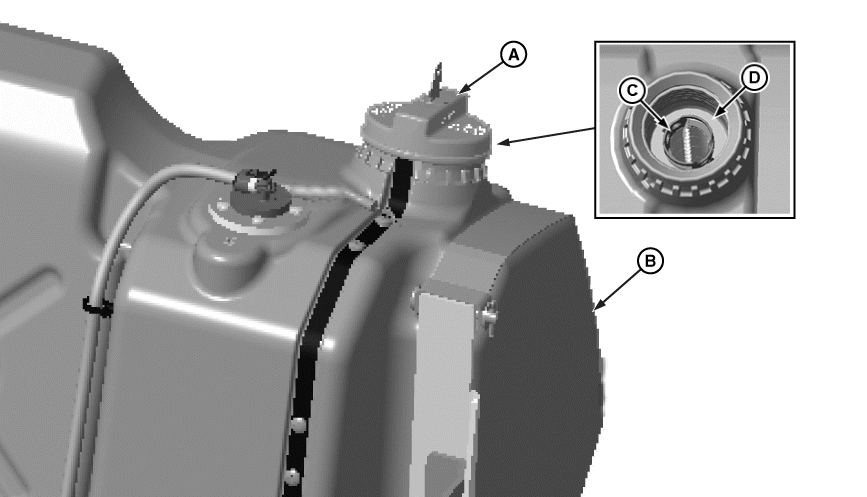

  1. APY88382
    APY88382-UN-19DEC23

    A - Filler Cap

    B - Fuel Tank

    C - Strainer

    D - Insert

    Remove filler cap (A) from fuel tank (B).


  2. Remove strainer (C) from insert (D).

  3. Clean strainer (C) with a smooth cloth.

    IMPORTANT: Do NOT rub the strainer on the hard surface. It may damage the fuel tank strainer (C).

  4. Reinstall the strainer (C) in the reverse order of removal process.

pa01607,1689325305607-19-20231219
