Drain Fuel Tank

1.

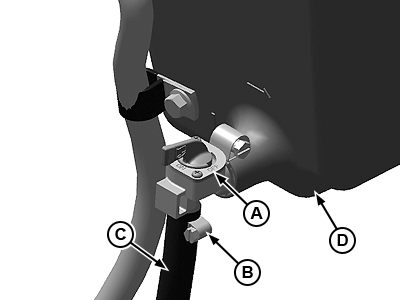

   APY81554-UN-11JUL23

   A - Valve

   B - Clamp

   C - Hose

   D - Fuel Tank

   Rotate the valve (A) to closed position.

---




2. Loosen clamp (B) and remove hose (C) from valve (A).

3. Position a suitable container under fuel tank (D) and open valve (A) to drain fuel from fuel tank (D).

4. Rotate the valve (A) to close position, after the fuel is completely drained from the fuel tank (D).

5. Inspect any part damage or other imperfections. Replace if necessary.

6. To reinstall, follow the reverse order of removal process.
