Replace Fuel Filter Insert (Single Bowl Cartridge Fuel Filter)- If Equipped

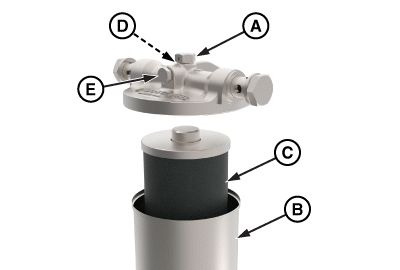

APY92981
APY92981-UN-07MAR24

A - Cap Screw

B - Filter Element Bowl

C - Filter Insert

D - Washer

E - Bleed Screw

  1. Remove cap screw (A) and filter element bowl (B).

  2. Take out filter insert (C).

  3. Drain the fuel and clean the bowl.

  4. Install new filter insert.

  5. Reinstall the bowl (B) and tighten the screw (A) and washer (D).

  6. Bleed the system from bleed screw (E).

IMPORTANT: Always use new O-ring which comes filter inserts.
