Fuel System Components (Inline Pump)

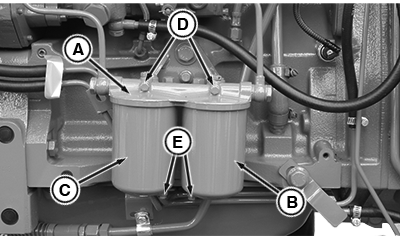

PY42589-UN-31JUL17

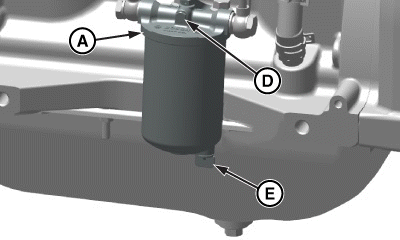

APY92982-UN-09MAR24

If Equipped

PY4887-UN-19APR05

A - Fuel Filter Assembly

B - Primary Filter

C - Secondary filter

D - Bleed Screw

E - Drain Plug

F - Fuel Injection Line

G - Fuel Line to Pump

H - Fuel Return Line

I - Hand Priming Pump

J - Lubrication

K - Accelerator

L - Fuel Shut Off Lever
